APTM20DAM05G

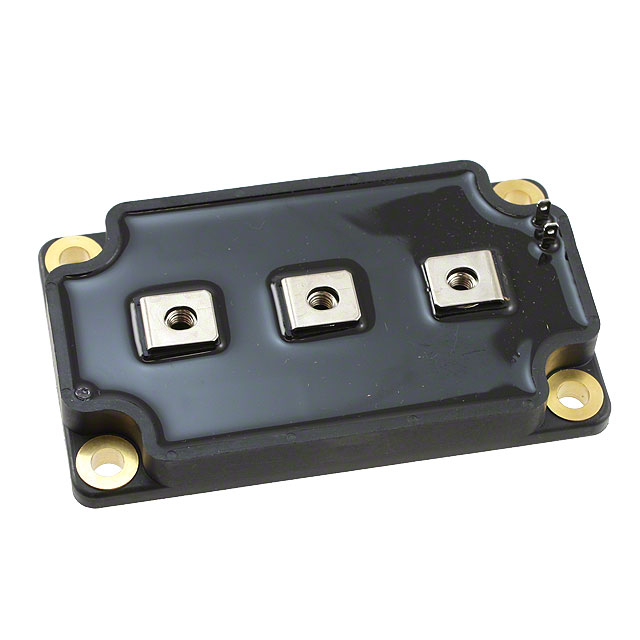

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTM20DAM05G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTM20DAM05G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTM20DAM05G |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET N-CH 200V 317A SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $39.189 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTM20DAM05G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET N-CH 200V 317A SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 968 pcs | Data sheet | Power Products CatalogAPTM20DAM05G |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 10mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SP6 | Series | - |
| Rds On (Max) @ Id, Vgs | 6 mOhm @ 158.5A, 10V | Power Dissipation (Max) | 1136W (Tc) |
| Packaging | Bulk | Package / Case | SP6 |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 27400pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 448nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 200V | Detailed Description | N-Channel 200V 317A (Tc) 1136W (Tc) Chassis Mount SP6 |
| Current - Continuous Drain (Id) @ 25°C | 317A (Tc) |
