APTM120H29FG

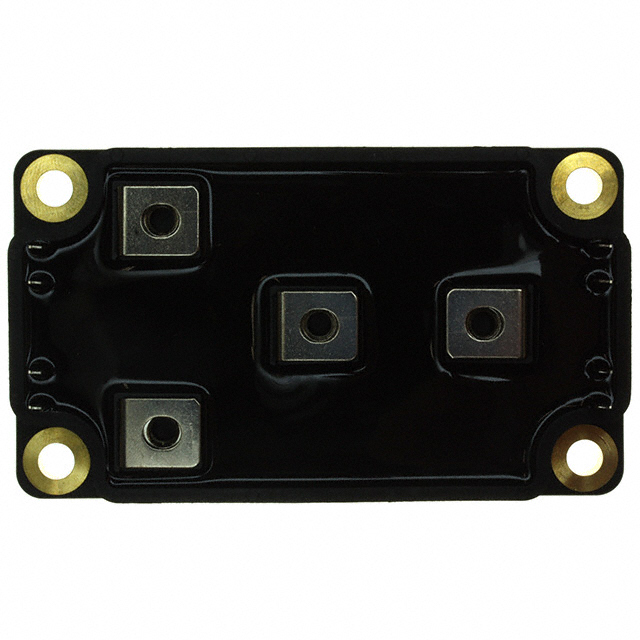

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTM120H29FG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTM120H29FG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTM120H29FG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET 4N-CH 1200V 34A SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $79.088 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTM120H29FG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET 4N-CH 1200V 34A SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 410 pcs | Data sheet | APTM120H29FGPower Products Catalog |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 5mA |
| Supplier Device Package | SP6 | Series | POWER MOS 7® |
| Rds On (Max) @ Id, Vgs | 348 mOhm @ 17A, 10V | Power - Max | 780W |
| Packaging | Bulk | Package / Case | SP6 |
| Other Names | APTM120H29FGMI APTM120H29FGMI-ND |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 10300pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 374nC @ 10V |
| FET Type | 4 N-Channel (H-Bridge) | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) | Detailed Description | Mosfet Array 4 N-Channel (H-Bridge) 1200V (1.2kV) 34A 780W Chassis Mount SP6 |
| Current - Continuous Drain (Id) @ 25°C | 34A |
