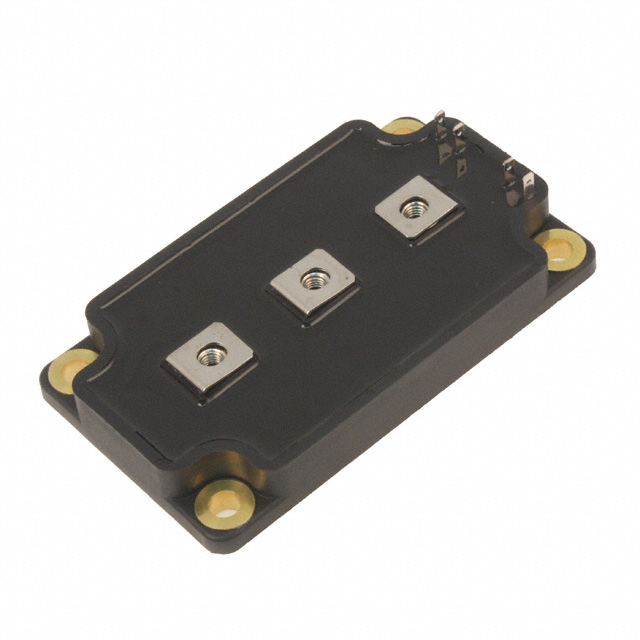

APTM100A13SCG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTM100A13SCG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTM100A13SCG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTM100A13SCG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET 2N-CH 1000V 65A SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $91.241 | $86.838 | $83.692 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTM100A13SCG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET 2N-CH 1000V 65A SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 408 pcs | Data sheet | APTM100A13SCG |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 6mA |
| Supplier Device Package | SP6 | Series | - |
| Rds On (Max) @ Id, Vgs | 156 mOhm @ 32.5A, 10V | Power - Max | 1250W |
| Packaging | Bulk | Package / Case | SP6 |
| Other Names | APTM100A13SCGMI APTM100A13SCGMI-ND |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 15200pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 562nC @ 10V |
| FET Type | 2 N-Channel (Half Bridge) | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 1000V (1kV) | Detailed Description | Mosfet Array 2 N-Channel (Half Bridge) 1000V (1kV) 65A 1250W Chassis Mount SP6 |
| Current - Continuous Drain (Id) @ 25°C | 65A |
