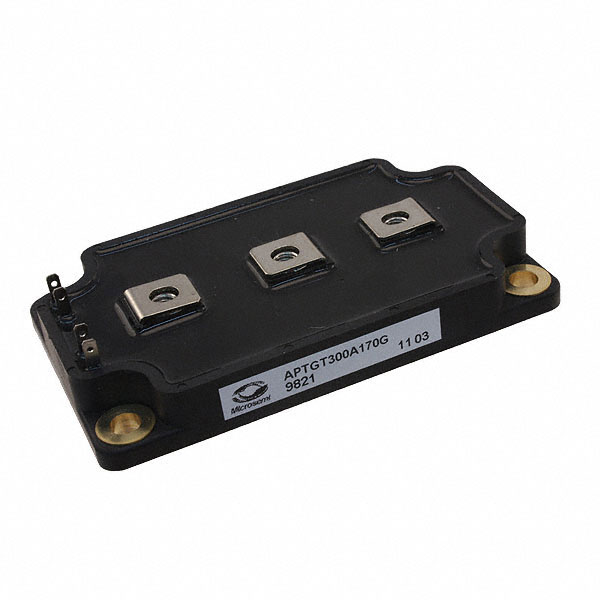

APTGT300A170G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGT300A170G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT300A170G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGT300A170G |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT PHASE TRENCH FIELD STOP SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $95.871 | $91.243 | $87.937 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGT300A170G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT PHASE TRENCH FIELD STOP SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 350 pcs | Data sheet | APTGT300A170GPower Products Catalog |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1700V |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 300A | Supplier Device Package | SP6 |
| Series | - | Power - Max | 1660W |
| Package / Case | SP6 | Operating Temperature | -40°C ~ 150°C (TJ) |
| NTC Thermistor | No | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 26.5nF @ 25V |
| Input | Standard | IGBT Type | Trench Field Stop |
| Detailed Description | IGBT Module Trench Field Stop Half Bridge 1700V 400A 1660W Chassis Mount SP6 | Current - Collector Cutoff (Max) | 750µA |
| Current - Collector (Ic) (Max) | 400A | Configuration | Half Bridge |
