APTGT200DU120G

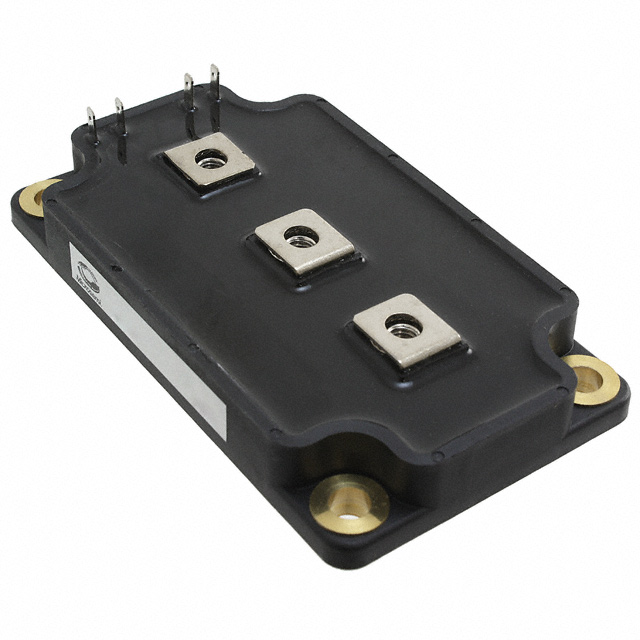

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGT200DU120G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT200DU120G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGT200DU120G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MOD IGBT TRENCH DL SRC SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $44.477 | $41.569 | $40.115 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGT200DU120G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MOD IGBT TRENCH DL SRC SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 928 pcs | Data sheet | Power Products CatalogAPTGT200DU120G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 200A | Supplier Device Package | SP6 |
| Series | - | Power - Max | 890W |
| Package / Case | SP6 | Operating Temperature | -40°C ~ 150°C (TJ) |
| NTC Thermistor | No | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 14nF @ 25V |
| Input | Standard | IGBT Type | Trench Field Stop |
| Detailed Description | IGBT Module Trench Field Stop Dual, Common Source 1200V 280A 890W Chassis Mount SP6 | Current - Collector Cutoff (Max) | 350µA |
| Current - Collector (Ic) (Max) | 280A | Configuration | Dual, Common Source |
