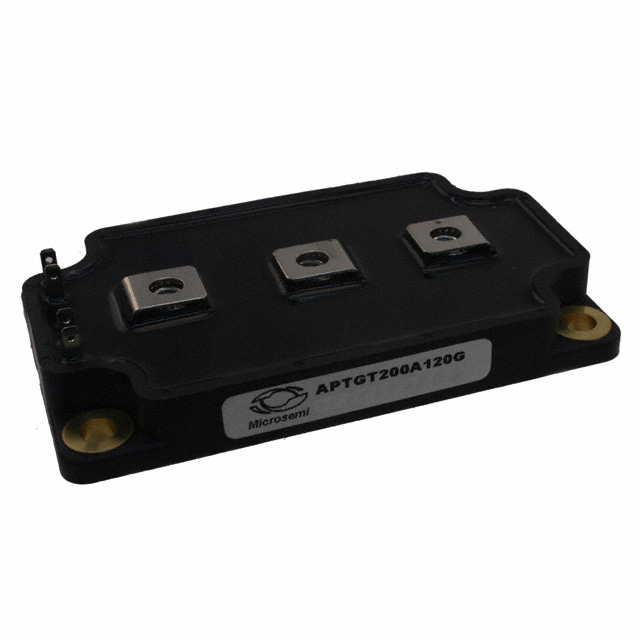

APTGT200A120G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGT200A120G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT200A120G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGT200A120G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MODULE IGBT 1200V 200A SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $44.577 | $41.662 | $40.205 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGT200A120G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MODULE IGBT 1200V 200A SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 898 pcs | Data sheet | APTGT200A120GPower Products Catalog |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 200A | Supplier Device Package | SP6 |
| Series | - | Power - Max | 890W |
| Package / Case | SP6 | Other Names | APTGT200A120GMI APTGT200A120GMI-ND |
| Operating Temperature | -40°C ~ 150°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 14nF @ 25V | Input | Standard |
| IGBT Type | Trench Field Stop | Detailed Description | IGBT Module Trench Field Stop Half Bridge 1200V 280A 890W Chassis Mount SP6 |
| Current - Collector Cutoff (Max) | 350µA | Current - Collector (Ic) (Max) | 280A |
| Configuration | Half Bridge |
