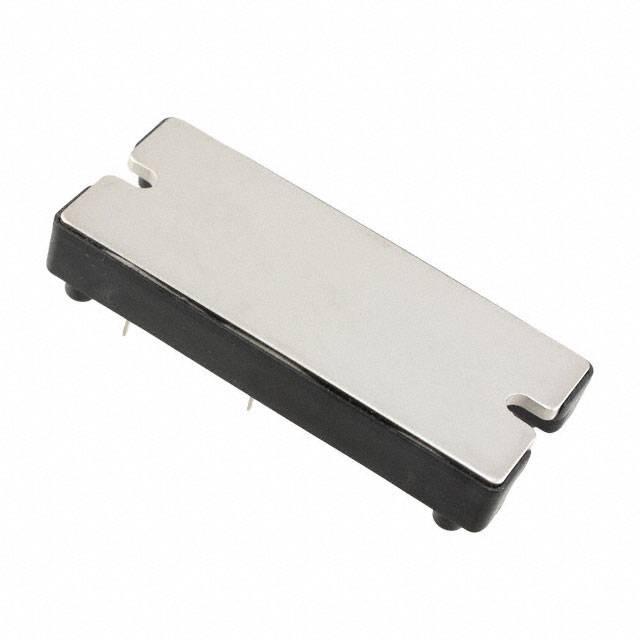

APTGT150DU120TG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGT150DU120TG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT150DU120TG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGT150DU120TG |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT MOD TRENCH DUAL SOURCE SP4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $25.744 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGT150DU120TG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT MOD TRENCH DUAL SOURCE SP4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1204 pcs | Data sheet | APTGT150DU120TGPower Products Catalog |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 150A | Supplier Device Package | SP4 |
| Series | - | Power - Max | 690W |
| Package / Case | SP4 | Operating Temperature | -40°C ~ 150°C (TJ) |
| NTC Thermistor | Yes | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 10.7nF @ 25V |
| Input | Standard | IGBT Type | Trench Field Stop |
| Detailed Description | IGBT Module Trench Field Stop Dual, Common Source 1200V 220A 690W Chassis Mount SP4 | Current - Collector Cutoff (Max) | 250µA |
| Current - Collector (Ic) (Max) | 220A | Configuration | Dual, Common Source |
