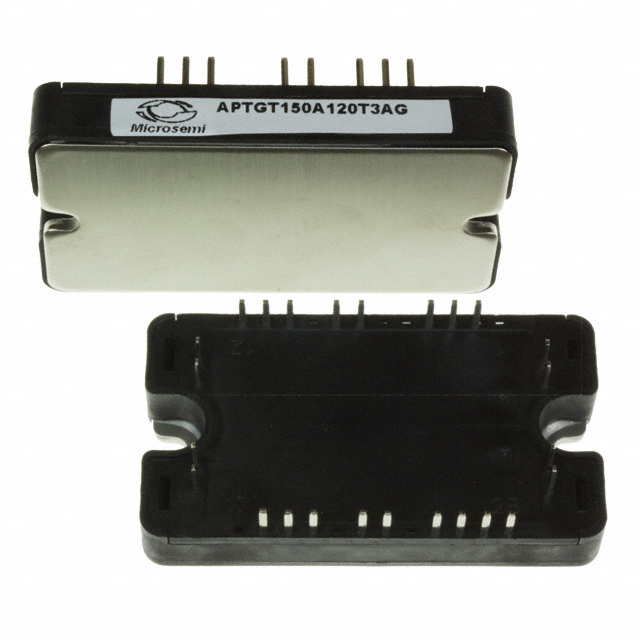

APTGT150A120T3AG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGT150A120T3AG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT150A120T3AG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGT150A120T3AG |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT ARRAY 1200V 220A 833W SP3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $25.156 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGT150A120T3AG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT ARRAY 1200V 220A 833W SP3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1513 pcs | Data sheet | Power Products CatalogAPTGT150A120T3AG |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 150A | Supplier Device Package | SP3 |
| Series | - | Power - Max | 833W |
| Package / Case | SP3 | Other Names | APTGT150A120T3AGMP APTGT150A120T3AGMP-ND |
| Operating Temperature | -40°C ~ 150°C (TJ) | NTC Thermistor | Yes |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 10.7nF @ 25V | Input | Standard |
| IGBT Type | Trench Field Stop | Detailed Description | IGBT Module Trench Field Stop Half Bridge 1200V 220A 833W Chassis Mount SP3 |
| Current - Collector Cutoff (Max) | 250µA | Current - Collector (Ic) (Max) | 220A |
| Configuration | Half Bridge |
