APTGT100A60T1G

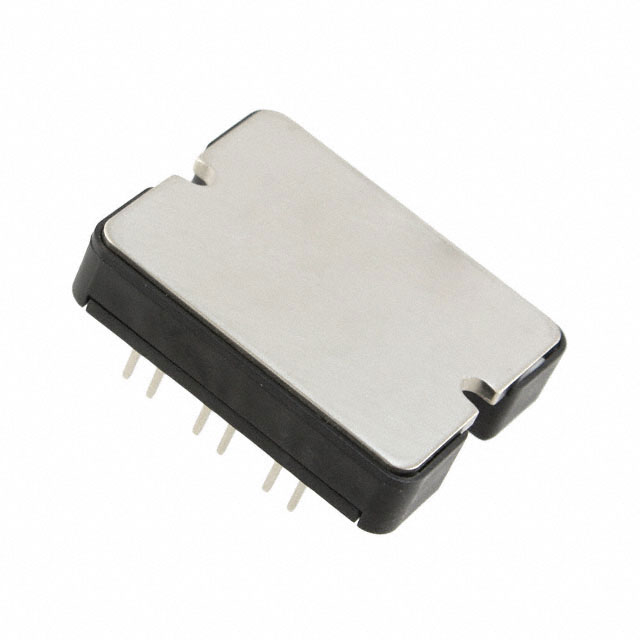

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGT100A60T1G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT100A60T1G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGT100A60T1G |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT PHASE LEG 600V 150A SP1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $12.185 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGT100A60T1G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT PHASE LEG 600V 150A SP1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2973 pcs | Data sheet | Power Products CatalogAPTGT100A60T1G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 100A | Supplier Device Package | SP1 |
| Series | - | Power - Max | 340W |
| Package / Case | SP1 | Operating Temperature | -40°C ~ 175°C (TJ) |
| NTC Thermistor | Yes | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 6.1nF @ 25V |
| Input | Standard | IGBT Type | Trench Field Stop |
| Detailed Description | IGBT Module Trench Field Stop Half Bridge 600V 150A 340W Chassis Mount SP1 | Current - Collector Cutoff (Max) | 250µA |
| Current - Collector (Ic) (Max) | 150A | Configuration | Half Bridge |
