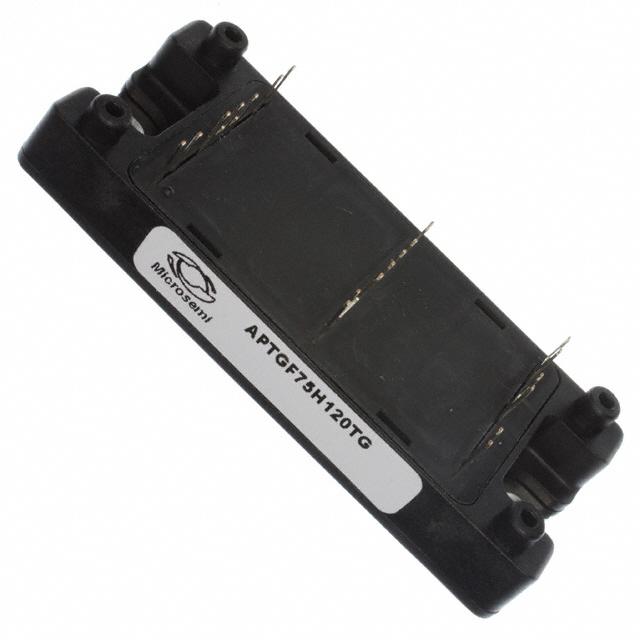

APTGF75H120TG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGF75H120TG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGF75H120TG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGF75H120TG |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MODULE IGBT 1200V 75A SP4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGF75H120TG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MODULE IGBT 1200V 75A SP4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4572 pcs | Data sheet | APTGF75H120TGPower Products Catalog |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 75A | Supplier Device Package | SP4 |
| Series | - | Power - Max | 500W |
| Package / Case | SP4 | Other Names | APTGF75H120TGMI APTGF75H120TGMI-ND |
| Operating Temperature | - | NTC Thermistor | Yes |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 5.1nF @ 25V |
| Input | Standard | IGBT Type | NPT |
| Detailed Description | IGBT Module NPT Full Bridge Inverter 1200V 100A 500W Chassis Mount SP4 | Current - Collector Cutoff (Max) | 250µA |
| Current - Collector (Ic) (Max) | 100A | Configuration | Full Bridge Inverter |
