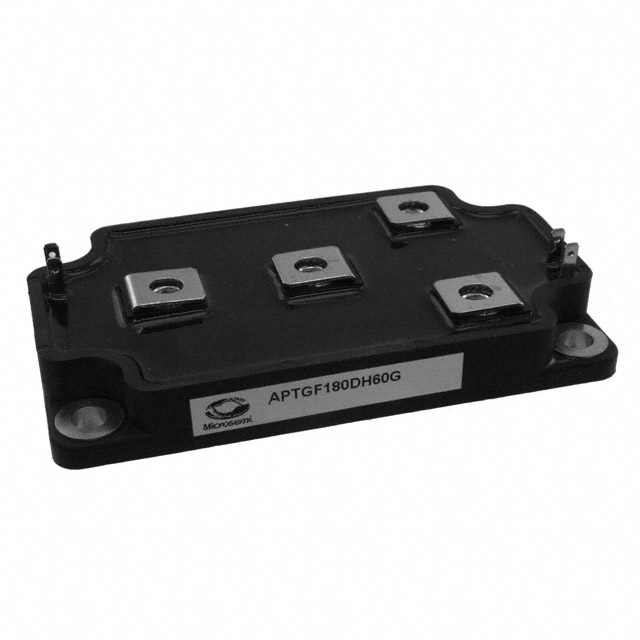

APTGF180DH60G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGF180DH60G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGF180DH60G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGF180DH60G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MODULE IGBT 600V 180A SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGF180DH60G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MODULE IGBT 600V 180A SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5004 pcs | Data sheet | Power Products CatalogAPTGF180DH60G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 180A | Supplier Device Package | SP6 |
| Series | - | Power - Max | 833W |
| Package / Case | SP6 | Other Names | APTGF180DH60GMI APTGF180DH60GMI-ND |
| Operating Temperature | - | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 8.6nF @ 25V |
| Input | Standard | IGBT Type | NPT |
| Detailed Description | IGBT Module NPT Asymmetrical Bridge 600V 220A 833W Chassis Mount SP6 | Current - Collector Cutoff (Max) | 300µA |
| Current - Collector (Ic) (Max) | 220A | Configuration | Asymmetrical Bridge |
