Home > Products > Discrete Semiconductor Products > Diodes - Bridge Rectifiers > APTDF60H1201G

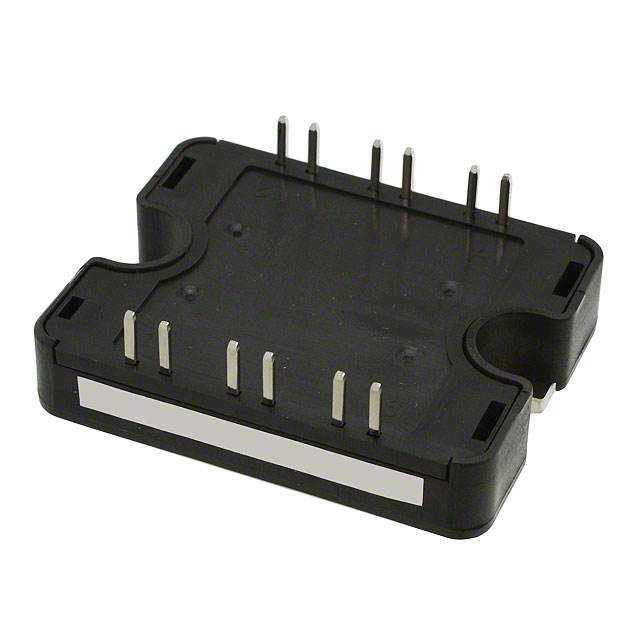

APTDF60H1201G

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTDF60H1201G with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	APTDF60H1201G
Manufacturer	Microsemi
Description	POWER MOD DIO FULL BRIDGE SP1
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3170 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$9.974

Product parameter
Data sheet

Product parameter

Part Number	APTDF60H1201G	Manufacturer	Microsemi
Description	POWER MOD DIO FULL BRIDGE SP1	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3170 pcs	Data sheet	APTDF60H1201G
Category	Discrete Semiconductor Products	Voltage - Peak Reverse (Max)	1.2kV
Voltage - Forward (Vf) (Max) @ If	3V @ 60A	Technology	Standard
Supplier Device Package	SP1	Series	-
Packaging	Bulk	Package / Case	SP1
Operating Temperature	-40°C ~ 175°C (TJ)	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Single Phase
Detailed Description	Bridge Rectifier Single Phase Standard 1.2kV Chassis Mount SP1	Current - Reverse Leakage @ Vr	100µA @ 1200V
Current - Average Rectified (Io)	82A
