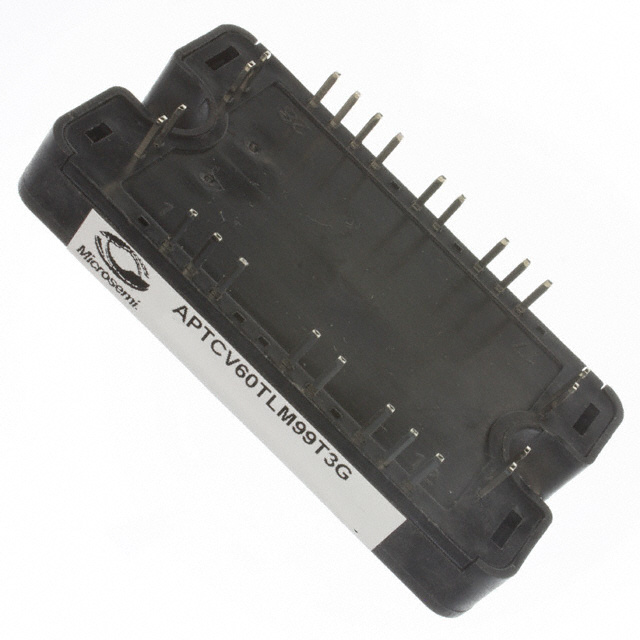

APTCV60TLM99T3G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTCV60TLM99T3G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTCV60TLM99T3G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTCV60TLM99T3G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MODULE IGBT QUAD 600V SP3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTCV60TLM99T3G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MODULE IGBT QUAD 600V SP3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5834 pcs | Data sheet | Power Products CatalogAPTCV60TLM99T3G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 30A | Supplier Device Package | SP3 |
| Series | - | Power - Max | 90W |
| Package / Case | SP3 | Other Names | APTCV60TLM99T3GMI APTCV60TLM99T3GMI-ND |
| Operating Temperature | -40°C ~ 175°C (TJ) | NTC Thermistor | Yes |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 1.6nF @ 25V |
| Input | Standard | IGBT Type | Trench Field Stop |
| Detailed Description | IGBT Module Trench Field Stop Three Level Inverter - IGBT, FET 600V 50A 90W Chassis Mount SP3 | Current - Collector Cutoff (Max) | 250µA |
| Current - Collector (Ic) (Max) | 50A | Configuration | Three Level Inverter - IGBT, FET |
