APTC60SKM24T1G

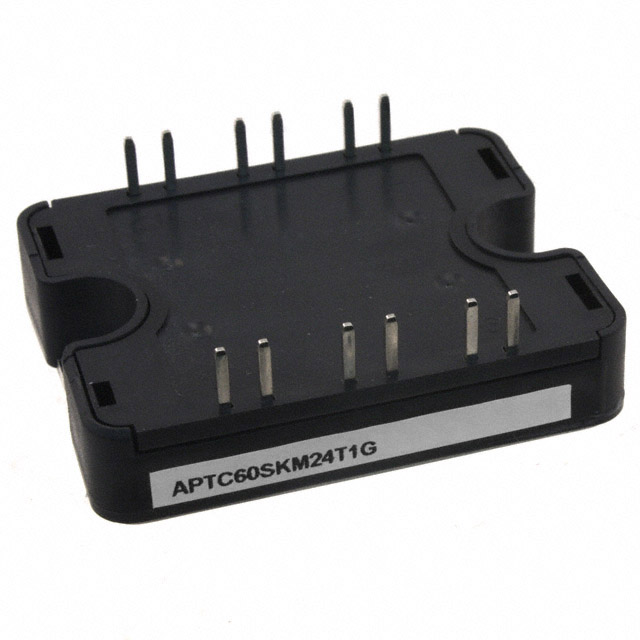

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTC60SKM24T1G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTC60SKM24T1G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTC60SKM24T1G |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET N-CH 600V 95A SP1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $15.519 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTC60SKM24T1G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET N-CH 600V 95A SP1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2014 pcs | Data sheet | Power Products CatalogAPTC60SKM24T1G |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.9V @ 5mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SP1 | Series | CoolMOS™ |
| Rds On (Max) @ Id, Vgs | 24 mOhm @ 47.5A, 10V | Power Dissipation (Max) | 462W (Tc) |
| Packaging | Bulk | Package / Case | SP1 |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 14400pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 300nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 95A (Tc) 462W (Tc) Chassis Mount SP1 |
| Current - Continuous Drain (Id) @ 25°C | 95A (Tc) |
