APT94N60L2C3G

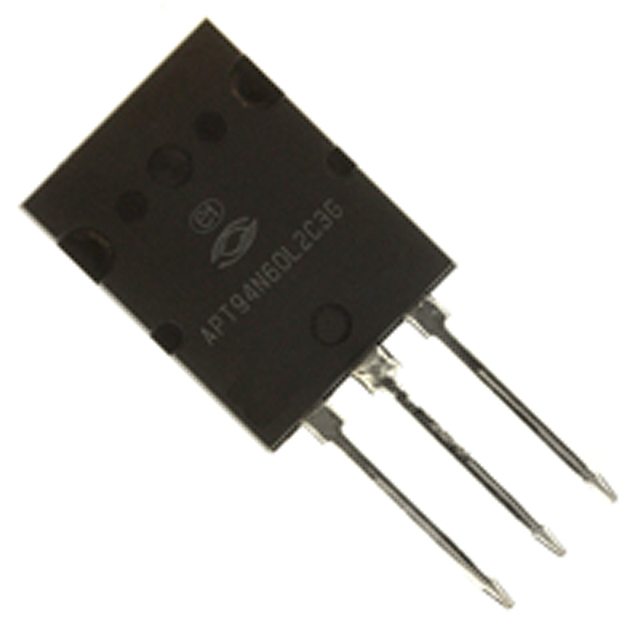

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT94N60L2C3G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT94N60L2C3G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT94N60L2C3G |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET N-CH 600V 94A TO264 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $10.545 | $8.962 | $8.33 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APT94N60L2C3G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET N-CH 600V 94A TO264 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3783 pcs | Data sheet | Power Products Catalog |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.9V @ 5.4mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 264 MAX™ [L2] | Series | - |
| Rds On (Max) @ Id, Vgs | 35 mOhm @ 60A, 10V | Power Dissipation (Max) | 833W (Tc) |
| Packaging | Tube | Package / Case | TO-264-3, TO-264AA |
| Other Names | APT94N60L2C3GMI APT94N60L2C3GMI-ND |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 13600pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 640nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 94A (Tc) 833W (Tc) Through Hole 264 MAX™ [L2] | Current - Continuous Drain (Id) @ 25°C | 94A (Tc) |
