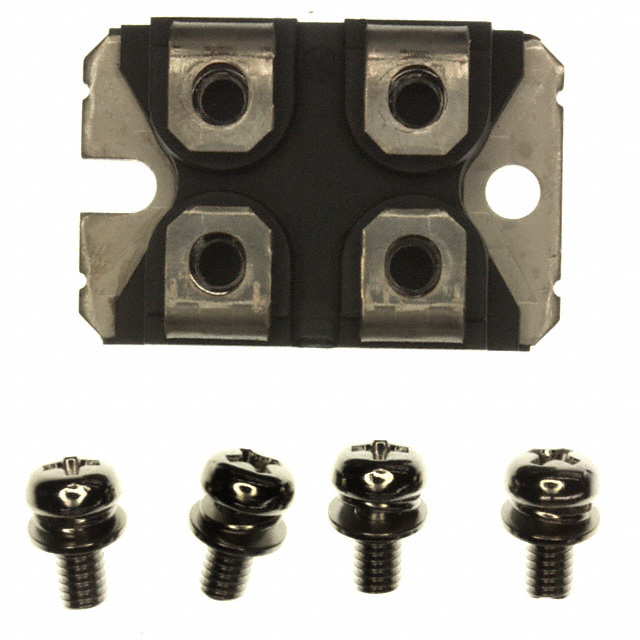

APT75GP120J
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT75GP120J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT75GP120J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT75GP120J |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT 1200V 128A 543W SOT227 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $15.065 | $14.089 | $13.03 | $12.216 | $11.401 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | APT75GP120J | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT 1200V 128A 543W SOT227 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2888 pcs | Data sheet | APT75GP120JPower Products Catalog |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 75A | Supplier Device Package | ISOTOP® |
| Series | POWER MOS 7® | Power - Max | 543W |
| Package / Case | ISOTOP | Other Names | APT75GP120JMI APT75GP120JMI-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 23 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 7.04nF @ 25V | Input | Standard |
| IGBT Type | PT | Detailed Description | IGBT Module PT Single 1200V 128A 543W Chassis Mount ISOTOP® |
| Current - Collector Cutoff (Max) | 1mA | Current - Collector (Ic) (Max) | 128A |
| Configuration | Single |
