APT6013JLL

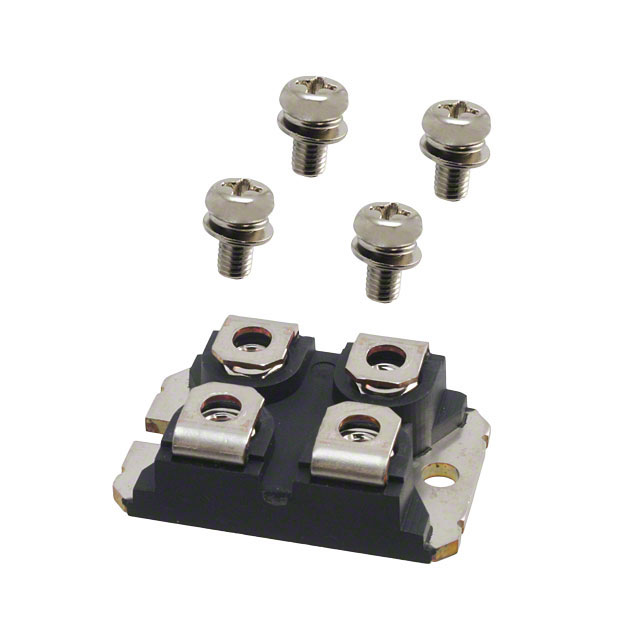

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT6013JLL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT6013JLL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT6013JLL |
|---|---|
| Manufacturer | Microsemi Corporation |
| Description | MOSFET N-CH 600V 39A SOT-227 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $13.518 | $12.504 | $10.645 | $9.80 | $9.293 | |
| 1000 pcs | 2500 pcs | 5000 pcs | 10000 pcs | ||
| $8.786 | $8.516 | $8.279 | $8.11 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | APT6013JLL | Manufacturer | Microsemi Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 600V 39A SOT-227 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3892 pcs | Data sheet | APT6013JLL |
| Category | Discrete Semiconductor Products | Voltage - Test | 5630pF @ 25V |
| Voltage - Breakdown | ISOTOP® | Vgs(th) (Max) @ Id | 130 mOhm @ 19.5A, 10V |
| Technology | MOSFET (Metal Oxide) | Series | POWER MOS 7® |
| RoHS Status | Tube | Rds On (Max) @ Id, Vgs | 39A |
| Polarization | SOT-227-4, miniBLOC | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Part Number | APT6013JLL | Input Capacitance (Ciss) (Max) @ Vds | 130nC @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 5V @ 2.5mA | FET Feature | N-Channel |
| Expanded Description | N-Channel 600V 39A 460W (Tc) Chassis Mount ISOTOP® | Drain to Source Voltage (Vdss) | - |
| Description | MOSFET N-CH 600V 39A SOT-227 | Current - Continuous Drain (Id) @ 25°C | 600V |
| Capacitance Ratio | 460W (Tc) |
