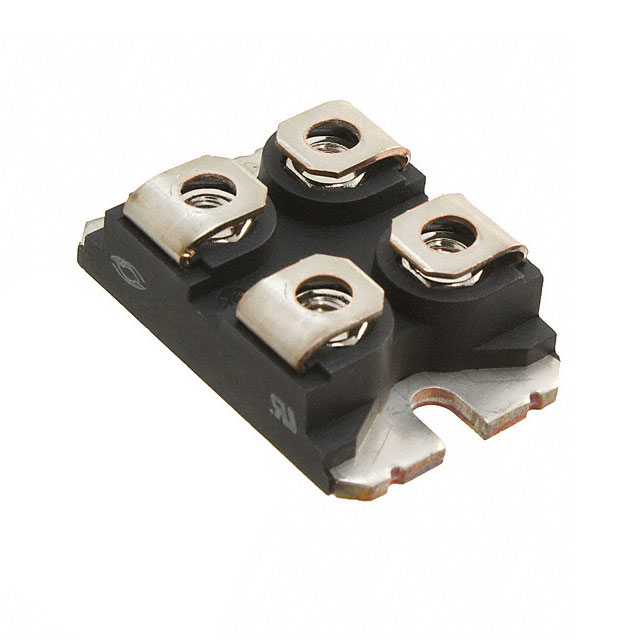

APT50GR120JD30
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT50GR120JD30 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT50GR120JD30 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT50GR120JD30 |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT 1200V 84A 417W SOT227 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APT50GR120JD30 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT 1200V 84A 417W SOT227 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4345 pcs | Data sheet | APT50GR120JD30 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 50A | Supplier Device Package | SOT-227 |
| Series | - | Power - Max | 417W |
| Package / Case | SOT-227-4 | Operating Temperature | -55°C ~ 150°C (TJ) |
| NTC Thermistor | No | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 5.55nF @ 25V | Input | Standard |
| IGBT Type | NPT | Detailed Description | IGBT Module NPT Single 1200V 84A 417W Chassis Mount SOT-227 |
| Current - Collector Cutoff (Max) | 1.1mA | Current - Collector (Ic) (Max) | 84A |
| Configuration | Single |
