APT18M80S

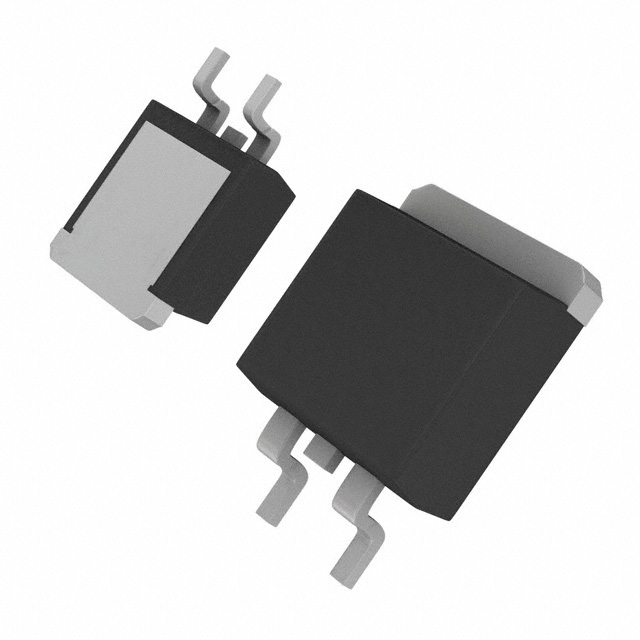

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT18M80S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT18M80S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT18M80S |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET N-CH 800V 19A D3PAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APT18M80S | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET N-CH 800V 19A D3PAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4159 pcs | Data sheet | APT18M80B/S |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 1mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | D3Pak | Series | POWER MOS 8™ |
| Rds On (Max) @ Id, Vgs | 530 mOhm @ 9A, 10V | Power Dissipation (Max) | 500W (Tc) |
| Packaging | Bulk | Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3760pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 120nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 800V |
| Detailed Description | N-Channel 800V 19A (Tc) 500W (Tc) Surface Mount D3Pak | Current - Continuous Drain (Id) @ 25°C | 19A (Tc) |
