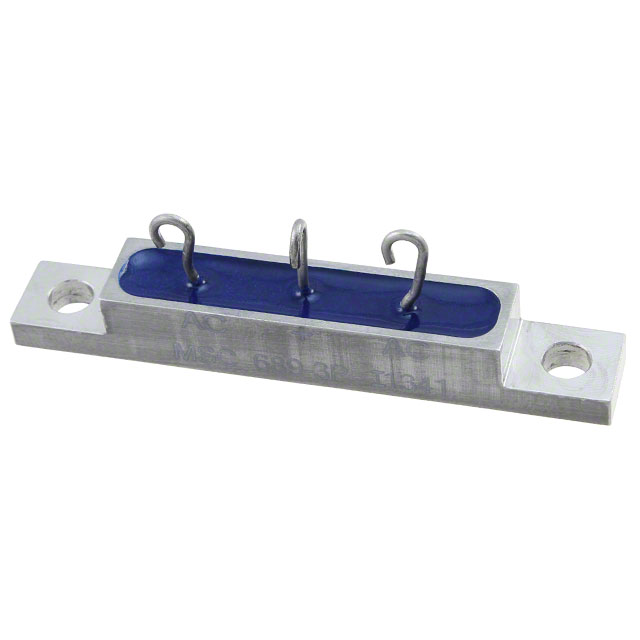

689-3P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 689-3P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 689-3P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 689-3P |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE MODULE 300V 15A SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 4 pcs | ||||
|---|---|---|---|---|---|
| $75.168 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 689-3P | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE MODULE 300V 15A SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 432 pcs | Data sheet | 681(e3),689(e3) |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.2V @ 10A |
| Voltage - DC Reverse (Vr) (Max) | 300V | Supplier Device Package | ND |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 500ns | Packaging | Bulk |
| Package / Case | ND, Module | Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Diode Configuration | 1 Pair Common Cathode | Detailed Description | Diode Array 1 Pair Common Cathode Standard 300V 15A Chassis Mount ND, Module |
| Current - Reverse Leakage @ Vr | 10µA @ 300V | Current - Average Rectified (Io) (per Diode) | 15A |
