2N720A

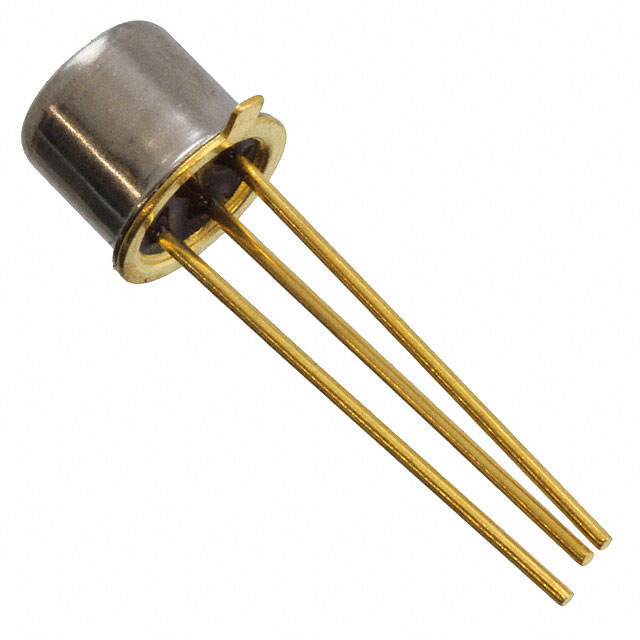

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N720A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N720A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N720A |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS NPN 80V 0.5A TO-18 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $3.889 | $3.501 | $3.19 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.878 | $2.645 | $2.412 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N720A | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS NPN 80V 0.5A TO-18 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 14779 pcs | Data sheet | 2N720A, 2N1893(S) |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 80V |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 15mA, 150mA | Transistor Type | NPN |
| Supplier Device Package | TO-18 (TO-206AA) | Series | - |
| Power - Max | 500mW | Packaging | Bulk |
| Package / Case | TO-206AA, TO-18-3 Metal Can | Other Names | 2N720AMS |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor NPN 80V 500mA 500mW Through Hole TO-18 (TO-206AA) | DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 10V |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | Current - Collector (Ic) (Max) | 500mA |
