2N4029

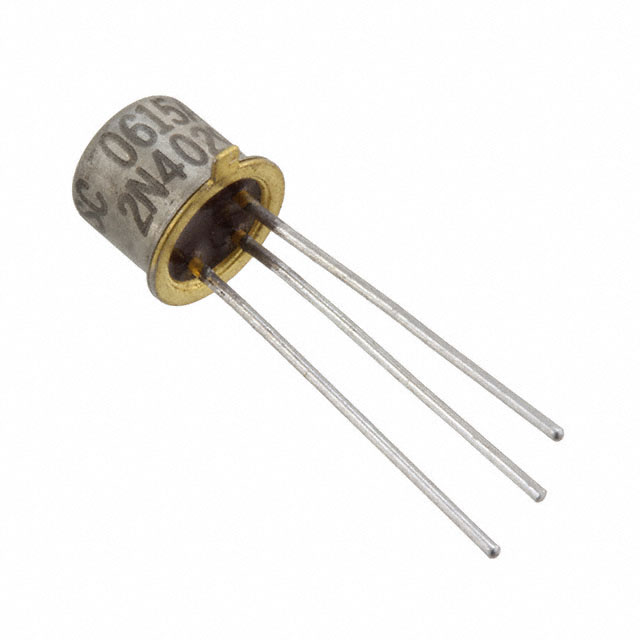

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N4029 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N4029 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N4029 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS PNP 80V 1A TO-18 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 101 pcs | ||||
|---|---|---|---|---|---|
| $3.414 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N4029 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS PNP 80V 1A TO-18 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 9580 pcs | Data sheet | 2N4029, 2N4033(U, UA, UB) |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 80V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 100mA, 1A | Transistor Type | PNP |
| Supplier Device Package | TO-18 | Series | - |
| Power - Max | 500mW | Packaging | Bulk |
| Package / Case | TO-206AA, TO-18-3 Metal Can | Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor PNP 80V 1A 500mW Through Hole TO-18 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 5V | Current - Collector Cutoff (Max) | 10µA (ICBO) |
| Current - Collector (Ic) (Max) | 1A |
