2N2323S

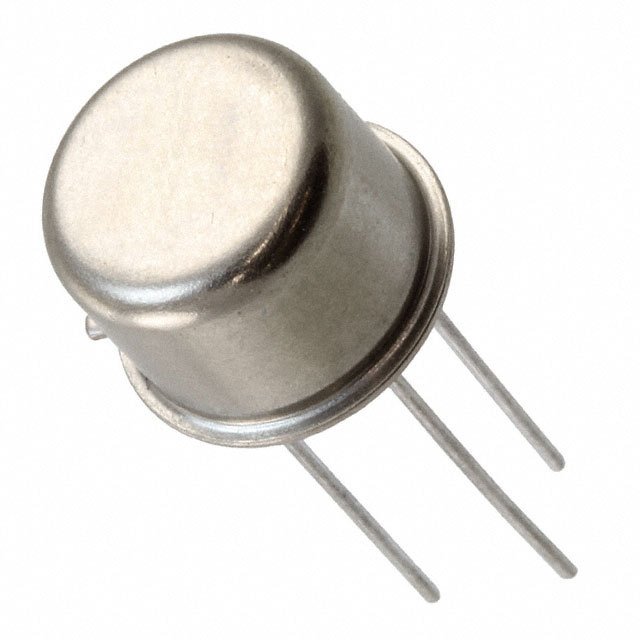

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N2323S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N2323S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N2323S |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE 50VDC TO-5 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N2323S | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE 50VDC TO-5 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4959 pcs | Data sheet | 2N2323 , 24, 26, 28, 29(A,AS,S) |
| Category | Discrete Semiconductor Products | Voltage - Off State | 50V |
| Voltage - Gate Trigger (Vgt) (Max) | 800mV | Supplier Device Package | TO-5 |
| Series | - | SCR Type | Sensitive Gate |
| Packaging | Bulk | Package / Case | TO-205AA, TO-5-3 Metal Can |
| Operating Temperature | -65°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Detailed Description | SCR 50V Sensitive Gate Through Hole TO-5 | Current - On State (It (AV)) (Max) | 220mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | Current - Hold (Ih) (Max) | 2mA |
| Current - Gate Trigger (Igt) (Max) | 200µA |
