1N5814
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N5814 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1N5814 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1N5814 |
|---|---|
| Manufacturer | Microsemi |

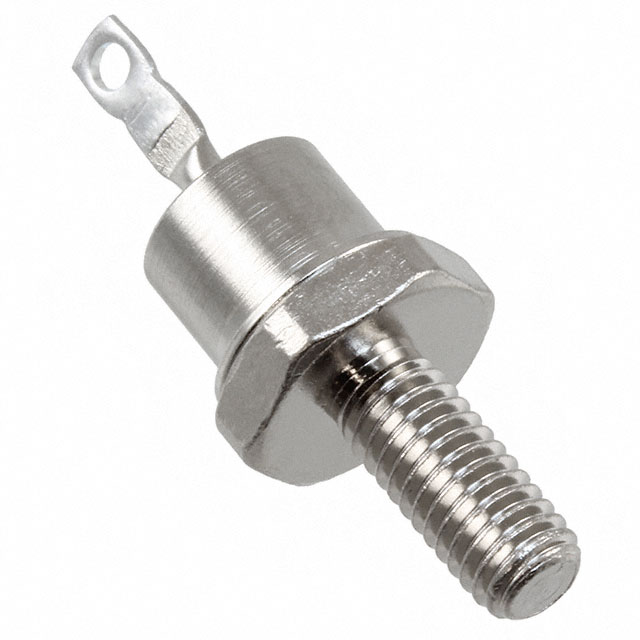

| Description | DIODE GEN PURP 100V 20A DO203AA |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $16.796 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1N5814 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 100V 20A DO203AA | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2136 pcs | Data sheet | 1N5812(R),1N5814-16(R) |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 950mV @ 20A |
| Voltage - DC Reverse (Vr) (Max) | 100V | Supplier Device Package | DO-203AA |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 35ns | Packaging | Bulk |
| Package / Case | DO-203AA, DO-4, Stud | Operating Temperature - Junction | -65°C ~ 175°C |
| Mounting Type | Stud Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 100V 20A Stud Mount DO-203AA | Current - Reverse Leakage @ Vr | 10µA @ 100V |
| Current - Average Rectified (Io) | 20A | Capacitance @ Vr, F | 300pF @ 10V, 1MHz |
