1N5802

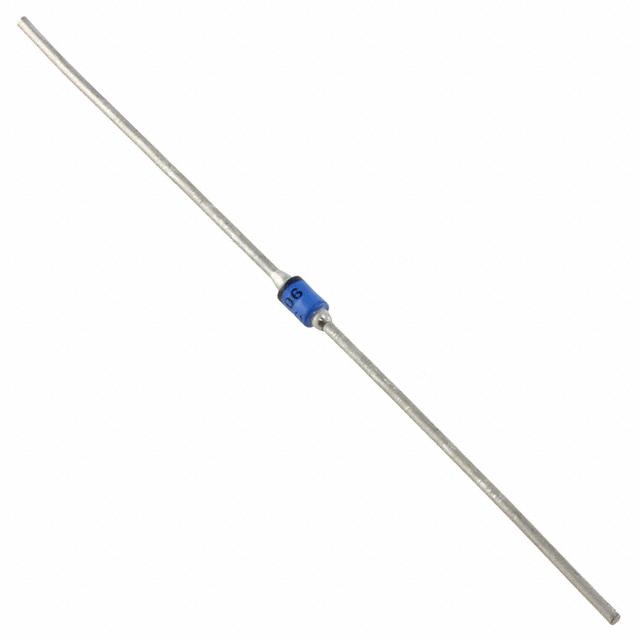

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N5802 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1N5802 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1N5802 |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 50V 1A AXIAL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.215 | $2.894 | $2.38 | $1.994 | $1.737 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1N5802 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 50V 1A AXIAL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 17764 pcs | Data sheet | 1N5802-06 |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 875mV @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 50V | Speed | Fast Recovery = 200mA (Io) |
| Series | - | Reverse Recovery Time (trr) | 25ns |
| Packaging | Bulk | Package / Case | A, Axial |
| Operating Temperature - Junction | -65°C ~ 175°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 50V 1A Through Hole | Current - Reverse Leakage @ Vr | 1µA @ 50V |
| Current - Average Rectified (Io) | 1A | Capacitance @ Vr, F | 25pF @ 10V, 1MHz |
