1N5614US

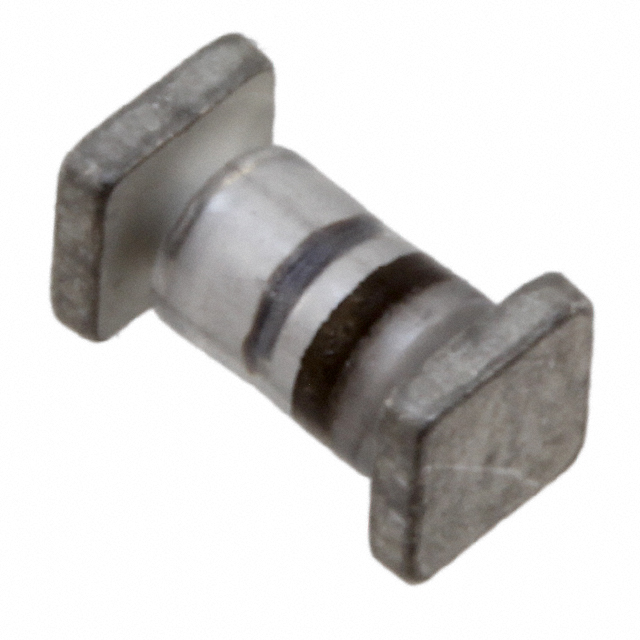

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N5614US with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1N5614US with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1N5614US |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 200V 1A D5A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.102 | $2.792 | $2.296 | $1.924 | $1.676 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1N5614US | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 200V 1A D5A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 22463 pcs | Data sheet | 1N5614US thru 1N5622US |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.3V @ 3A |
| Voltage - DC Reverse (Vr) (Max) | 200V | Supplier Device Package | D-5A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 2µs | Packaging | Bulk |
| Package / Case | SQ-MELF, A | Operating Temperature - Junction | -65°C ~ 200°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Diode Type | Standard | Detailed Description | Diode Standard 200V 1A Surface Mount D-5A |
| Current - Reverse Leakage @ Vr | 500nA @ 200V | Current - Average Rectified (Io) | 1A |
| Capacitance @ Vr, F | - |
