1N5420

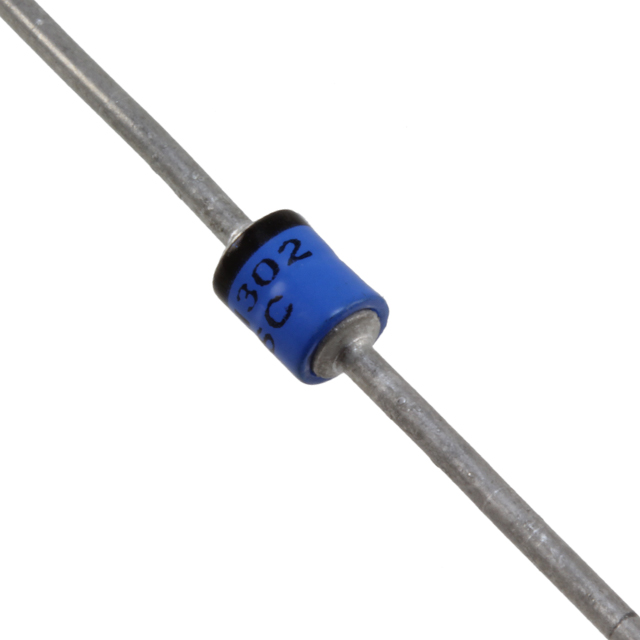

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N5420 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1N5420 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1N5420 |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 600V 3A AXIAL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.171 | $2.853 | $2.346 | $1.966 | $1.712 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1N5420 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 600V 3A AXIAL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 22976 pcs | Data sheet | 1N5415 - 20 |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.5V @ 9A |
| Voltage - DC Reverse (Vr) (Max) | 600V | Supplier Device Package | B, Axial |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 400ns | Packaging | Bulk |
| Package / Case | B, Axial | Operating Temperature - Junction | -65°C ~ 175°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Diode Type | Standard | Detailed Description | Diode Standard 600V 3A Through Hole B, Axial |
| Current - Reverse Leakage @ Vr | 1µA @ 600V | Current - Average Rectified (Io) | 3A |
| Capacitance @ Vr, F | - |
