Home > Products > Discrete Semiconductor Products > Diodes - Zener - Single > 1N5260BDO35E3

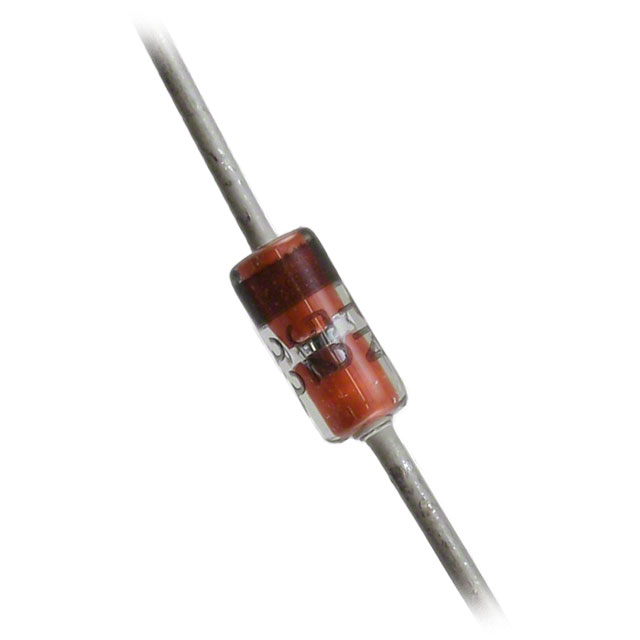

1N5260BDO35E3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N5260BDO35E3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1N5260BDO35E3
Manufacturer	Microsemi
Description	DIODE ZENER 43V 500MW DO35
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5921 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	1N5260BDO35E3	Manufacturer	Microsemi
Description	DIODE ZENER 43V 500MW DO35	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5921 pcs	Data sheet	1N5221 - 1N5281B, e3 DO-35
Category	Discrete Semiconductor Products	Voltage - Zener (Nom) (Vz)	43V
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA	Tolerance	±5%
Supplier Device Package	DO-35	Series	-
Power - Max	500mW	Packaging	Tape & Reel (TR)
Package / Case	DO-204AH, DO-35, Axial	Other Names	1N5260BDO35E3MSTR
Operating Temperature	-65°C ~ 175°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance (Max) (Zzt)	93 Ohms	Detailed Description	Zener Diode 43V 500mW ±5% Through Hole DO-35
Current - Reverse Leakage @ Vr	100nA @ 33V	Base Part Number	1N5260
