Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > SMD1150PL-TP

SMD1150PL-TP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMD1150PL-TP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SMD1150PL-TP
Manufacturer	Micro Commercial Components (MCC)
Description	DIODE SCHOTTKY 150V 1A SOD123FL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1013647 pcs
Reference Price (In US Dollars)	2500 pcs	5000 pcs	12500 pcs	25000 pcs	62500 pcs
Reference Price (In US Dollars)	$0.033	$0.031	$0.028	$0.027	$0.024

Product parameter
Data sheet

Product parameter

Part Number	SMD1150PL-TP	Manufacturer	Micro Commercial Components (MCC)
Description	DIODE SCHOTTKY 150V 1A SOD123FL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1013647 pcs	Data sheet	SMD15PL Thru SMD1200PL
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	850mV @ 1A
Voltage - DC Reverse (Vr) (Max)	150V	Supplier Device Package	SOD-123FL
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SOD-123F
Other Names	SMD1150PL-TPMSTR SMD1150PLTP	Operating Temperature - Junction	-55°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 150V 1A Surface Mount SOD-123FL
Current - Reverse Leakage @ Vr	500µA @ 150V	Current - Average Rectified (Io)	1A
Capacitance @ Vr, F	30pF @ 4V, 1MHz	Base Part Number	SMD1150

Related products
Related news

Related products

SMD1206P025TFA Image

Part#:~~SMD1206P025TFA~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 16V 250MA 1206~~
In Stock:~~5000~~

SMD1206P012TFA Image

Part#:~~SMD1206P012TFA~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 30V 125MA 1206~~
In Stock:~~4585~~

SMD0805P050TSA Image

Part#:~~SMD0805P050TSA~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 6V 500MA 0805~~
In Stock:~~4487~~

SMD100F/33-2 Image

Part#:~~SMD100F/33-2~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 33V 1.1A 2SMD~~
In Stock:~~249005~~

~~$0.084/pcs~~RFQ

SMD115HE-TP Image

Part#:~~SMD115HE-TP~~
Manufacturers:~~Micro Commercial Components (MCC)~~
Description:~~DIODE SCHOTTKY 150V 1A SOD123HE~~
In Stock:~~4200~~

Part#:~~SMD1~~
Manufacturers:~~Chip Quik, Inc.~~
Description:~~REMOVAL KIT FOR COMPONENTS SMD~~
In Stock:~~5175~~

~~$5.846/pcs~~RFQ

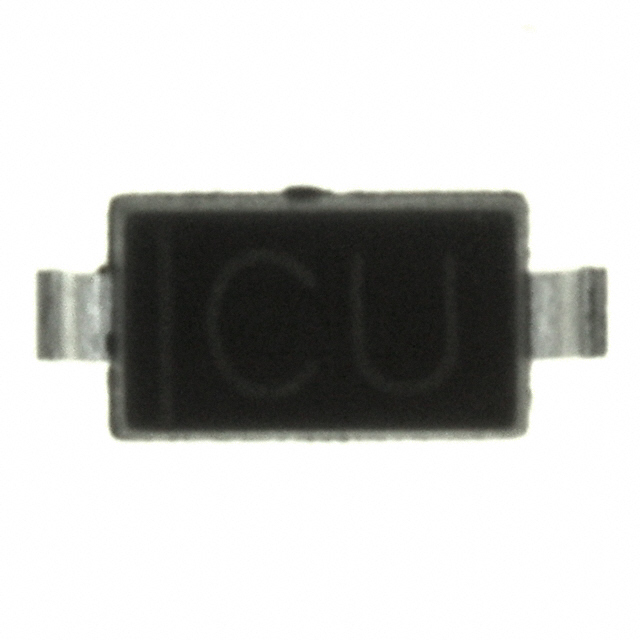

SMD1200PL-TP Image
