Home > Products > Circuit Protection > TVS - Diodes > SM8S26A-TP

SM8S26A-TP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM8S26A-TP with confidence from Components-World.HK, 1 Year Warranty

Dowload SM8S26A-TP Details in PDF

Request a Quote

Part Number	SM8S26A-TP
Manufacturer	Micro Commercial Components (MCC)
Description	TVS DIODE 26V 42.1V DO218AB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 70756 pcs
Reference Price (In US Dollars)	750 pcs	1500 pcs	2250 pcs
Reference Price (In US Dollars)	$0.618	$0.576	$0.549

Product parameter
Data sheet

Product parameter

Part Number	SM8S26A-TP	Manufacturer	Micro Commercial Components (MCC)
Description	TVS DIODE 26V 42.1V DO218AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	70756 pcs	Data sheet	SM8S14A - SM8S43A
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	26V
Voltage - Clamping (Max) @ Ipp	42.1V	Voltage - Breakdown (Min)	28.9V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	DO-218AB	Series	Automotive, AEC-Q101
Power Line Protection	No	Power - Peak Pulse	6600W (6.6kW)
Packaging	Tape & Reel (TR)	Package / Case	DO-218AB
Other Names	SM8S26A-TPMSTR	Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	157A	Capacitance @ Frequency	-
Applications	Automotive

Related products
Related news

Related products

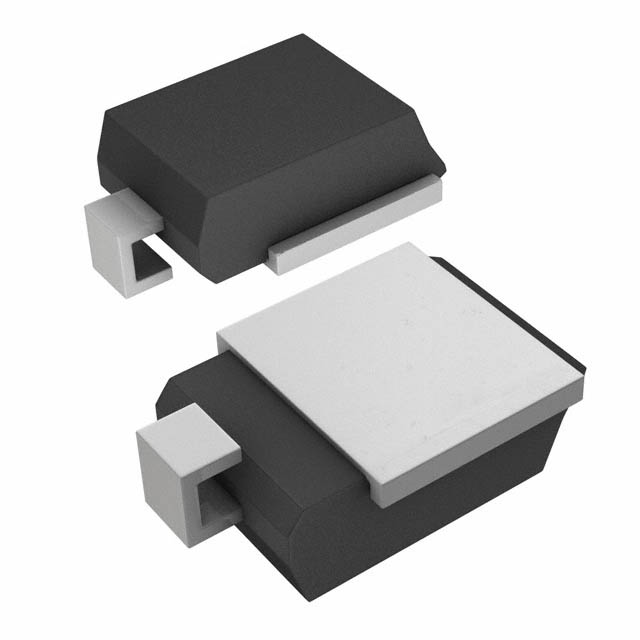

SM8S24AHE3_A/I Image
