Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > SD101BWS-TP

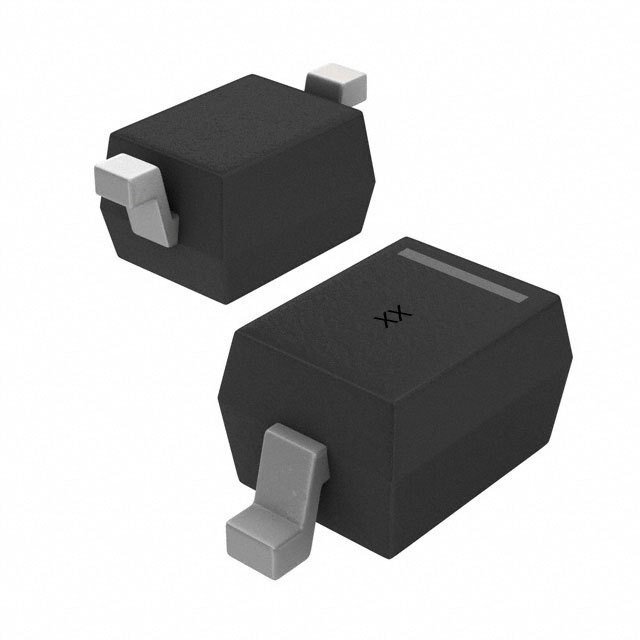

SD101BWS-TP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD101BWS-TP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SD101BWS-TP
Manufacturer	Micro Commercial Components (MCC)
Description	DIODE SCHOTTKY 50V SOD323
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 919667 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.13	$0.119	$0.067	$0.036	$0.024

Product parameter
Data sheet

Product parameter

Part Number	SD101BWS-TP	Manufacturer	Micro Commercial Components (MCC)
Description	DIODE SCHOTTKY 50V SOD323	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	919667 pcs	Data sheet	SD101AWS - SD101CWS
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	950mV @ 15mA
Voltage - DC Reverse (Vr) (Max)	50V	Supplier Device Package	SOD-323
Speed	Fast Recovery = 200mA (Io)	Series	-
Reverse Recovery Time (trr)	1ns	Packaging	Cut Tape (CT)
Package / Case	SC-76, SOD-323	Other Names	SD101BWSTPMSCT
Operating Temperature - Junction	-55°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 50V Surface Mount SOD-323	Current - Reverse Leakage @ Vr	200nA @ 40V
Current - Average Rectified (Io)	-	Capacitance @ Vr, F	2.1pF @ 0V, 1MHz
Base Part Number	SD101B
