Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > SD101A-TP

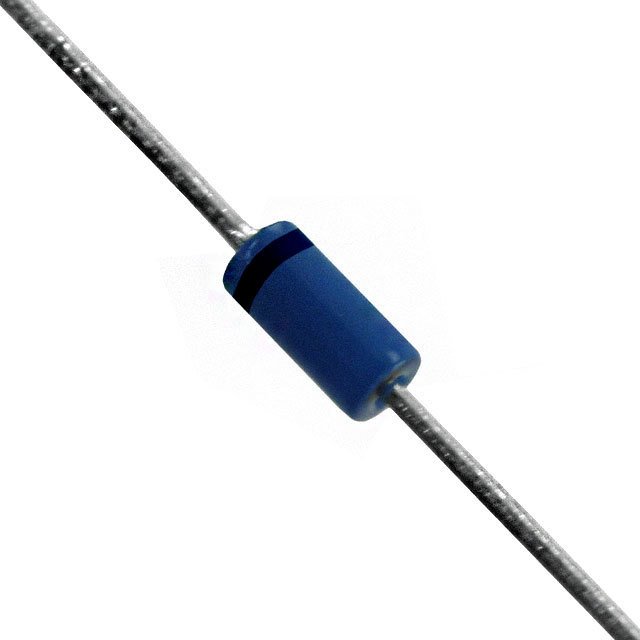

SD101A-TP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD101A-TP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SD101A-TP
Manufacturer	Micro Commercial Components (MCC)
Description	DIODE SCHOTTKY 60V 15MA DO35
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4827 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SD101A-TP	Manufacturer	Micro Commercial Components (MCC)
Description	DIODE SCHOTTKY 60V 15MA DO35	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4827 pcs	Data sheet	SD101A-SD101C
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1V @ 15mA
Voltage - DC Reverse (Vr) (Max)	60V	Supplier Device Package	DO-35
Speed	Small Signal =< 200mA (Io), Any Speed	Series	-
Reverse Recovery Time (trr)	1ns	Packaging	Tape & Reel (TR)
Package / Case	DO-204AH, DO-35, Axial	Other Names	SD101A-TPMSTR
Operating Temperature - Junction	125°C (Max)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 60V 15mA (DC) Through Hole DO-35
Current - Reverse Leakage @ Vr	200nA @ 50V	Current - Average Rectified (Io)	15mA (DC)
Capacitance @ Vr, F	-	Base Part Number	SD101A
