Home > Products > Discrete Semiconductor Products > Diodes - Bridge Rectifiers > MD75S16M4-BP

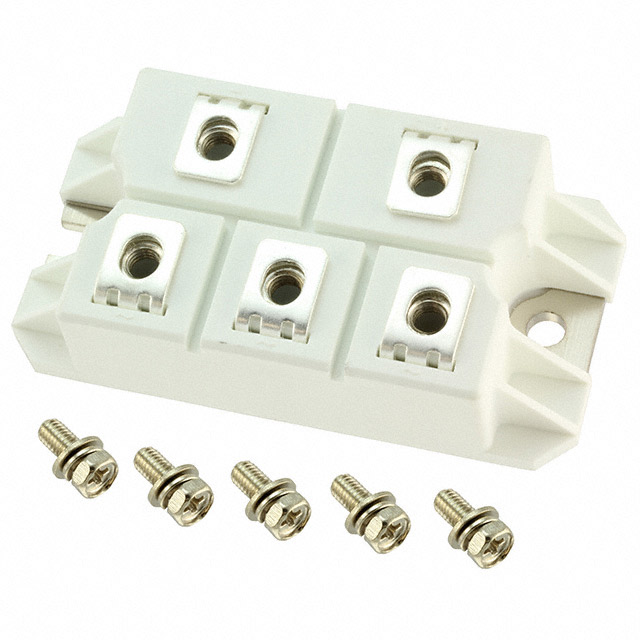

MD75S16M4-BP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MD75S16M4-BP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MD75S16M4-BP
Manufacturer	Micro Commercial Components (MCC)
Description	BRIDGE RECT 75A 1600V M4 PACK
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4095 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs	250 pcs
Reference Price (In US Dollars)	$12.848	$11.885	$10.921	$10.15	$9.315

Product parameter
Data sheet

Product parameter

Part Number	MD75S16M4-BP	Manufacturer	Micro Commercial Components (MCC)
Description	BRIDGE RECT 75A 1600V M4 PACK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4095 pcs	Data sheet	MD75SxxM4
Category	Discrete Semiconductor Products	Voltage - Peak Reverse (Max)	1.6kV
Voltage - Forward (Vf) (Max) @ If	1.5V @ 150A	Technology	Standard
Series	-	Packaging	Bulk
Package / Case	Chassis Mount	Other Names	MD75S16M4-BPMS
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Three Phase
Detailed Description	Bridge Rectifier Three Phase Standard 1.6kV Chassis Mount	Current - Reverse Leakage @ Vr	300µA @ 1600V
Current - Average Rectified (Io)	75A
