MCQ4559-TP

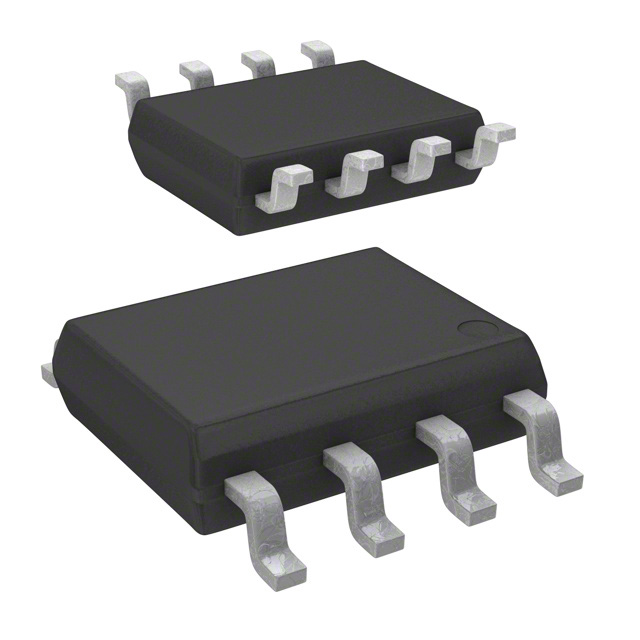

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCQ4559-TP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MCQ4559-TP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCQ4559-TP |
|---|---|
| Manufacturer | Micro Commercial Components (MCC) |
| Description | N&P-CHANNEL MOSFET, SOP-8 PACKAG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.245 | $0.205 | $0.153 | $0.113 | $0.087 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MCQ4559-TP | Manufacturer | Micro Commercial Components (MCC) |
|---|---|---|---|
| Description | N&P-CHANNEL MOSFET, SOP-8 PACKAG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 249455 pcs | Data sheet | MCQ4559 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 8-SOP | Series | - |
| Rds On (Max) @ Id, Vgs | 80 mOhm @ 3.1A, 10V | Power - Max | 2W |
| Packaging | Original-Reel® | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Other Names | MCQ4559-TPMSDKR | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 665pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 9nC @ 4.5V |
| FET Type | N and P-Channel | FET Feature | - |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | Mosfet Array N and P-Channel 60V 4.5A, 3.5A 2W Surface Mount 8-SOP |
| Current - Continuous Drain (Id) @ 25°C | 4.5A, 3.5A |
