Home > Products > Discrete Semiconductor Products > Diodes - Zener - Single > BZV55C15-TP

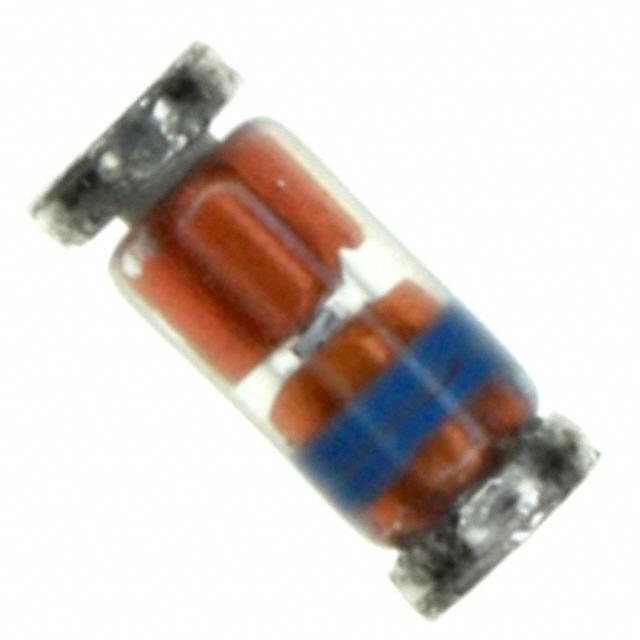

BZV55C15-TP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZV55C15-TP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZV55C15-TP
Manufacturer	Micro Commercial Components (MCC)
Description	DIODE ZENER 15V 500MW MINIMELF
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3929145 pcs
Reference Price (In US Dollars)	2500 pcs
Reference Price (In US Dollars)	$0.006

Product parameter
Data sheet

Product parameter

Part Number	BZV55C15-TP	Manufacturer	Micro Commercial Components (MCC)
Description	DIODE ZENER 15V 500MW MINIMELF	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3929145 pcs	Data sheet	BZV55C2V0 - BZV55C75
Category	Discrete Semiconductor Products	Voltage - Zener (Nom) (Vz)	15V
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA	Tolerance	±5%
Supplier Device Package	Mini MELF	Series	-
Power - Max	500mW	Packaging	Tape & Reel (TR)
Package / Case	DO-213AC, MINI-MELF, SOD-80	Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Impedance (Max) (Zzt)	30 Ohms
Detailed Description	Zener Diode 15V 500mW ±5% Surface Mount Mini MELF	Current - Reverse Leakage @ Vr	100nA @ 11V
