Home > Products > Integrated Circuits (ICs) > PMIC - Motor Drivers, Controllers > MTS2916A-LGC1

MTS2916A-LGC1

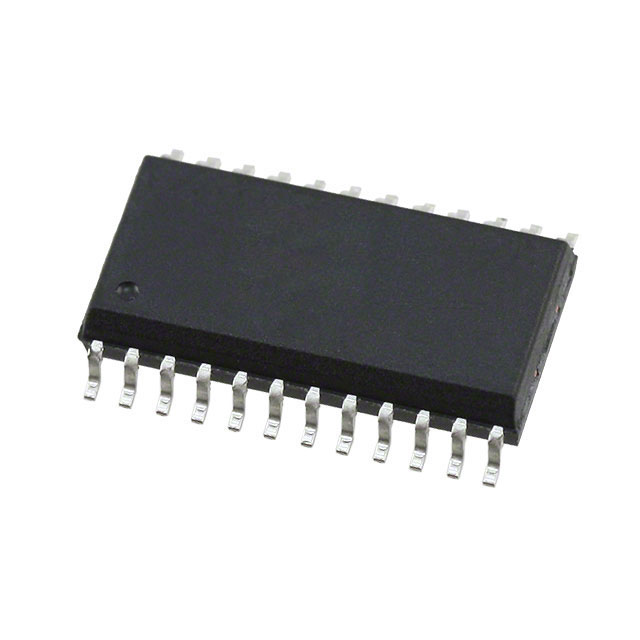

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MTS2916A-LGC1 with confidence from Components-World.HK, 1 Year Warranty

Dowload MTS2916A-LGC1 Details in PDF

Request a Quote

Part Number	MTS2916A-LGC1
Manufacturer	Micrel / Microchip Technology
Description	IC MOTOR DRIVER PAR 24SOP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 70012 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.303

Product parameter
Data sheet

Product parameter

Part Number	MTS2916A-LGC1	Manufacturer	Micrel / Microchip Technology
Description	IC MOTOR DRIVER PAR 24SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	70012 pcs	Data sheet	MTS2916A
Category	Integrated Circuits (ICs)	Voltage - Supply	4.5 V ~ 5.5 V
Voltage - Load	10 V ~ 40 V	Technology	CMOS
Supplier Device Package	24-SOP	Step Resolution	1, 1/2
Series	-	Packaging	Tape & Reel (TR)
Package / Case	24-BFSOP (0.295", 7.50mm Width)	Output Configuration	Half Bridge (4)
Other Names	MTS2916A-LGC1-ND MTS2916A-LGC1TR	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Function	Driver - Fully Integrated, Control and Power Stage
Detailed Description	Bipolar Motor Driver CMOS Parallel 24-SOP	Current - Output	750mA
Base Part Number	MTS2916A	Applications	General Purpose
