Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > MCP42XXDM-PTPLS

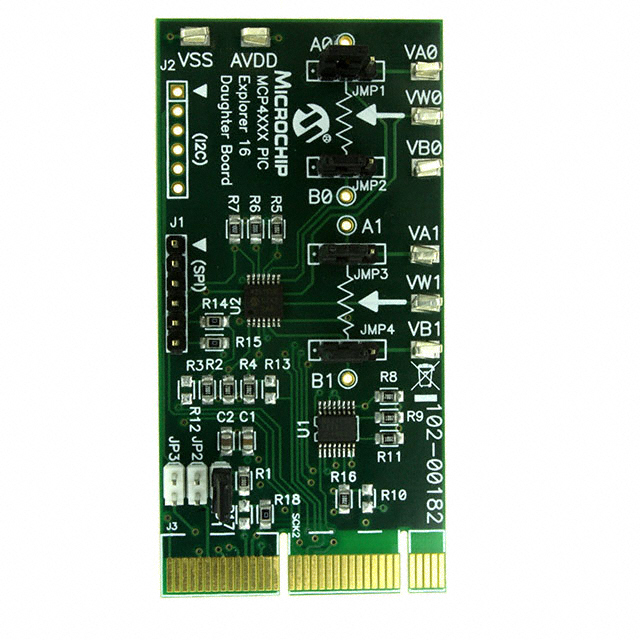

MCP42XXDM-PTPLS

MCP42XXDM-PTPLS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP42XXDM-PTPLS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP42XXDM-PTPLS
Manufacturer	Micrel / Microchip Technology
Description	BOARD DAUGHTER PICTAIL MCP42XX
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5039 pcs
Reference Price (In US Dollars)	7 pcs
Reference Price (In US Dollars)	$7.283

Product parameter
Data sheet

Product parameter

Part Number	MCP42XXDM-PTPLS	Manufacturer	Micrel / Microchip Technology
Description	BOARD DAUGHTER PICTAIL MCP42XX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5039 pcs	Data sheet	MCP42XX Daughter Board
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP42XX
Type	Data Acquisition	Supplied Contents	Board(s)
Series	PICtail™ Plus	Secondary Attributes	2.7 ~ 5.5 V, 150ppm/°C
Primary Attributes	1 Dual Pot, 10k Ohms, 257 Taps, SPI Interface	Other Names	MCP42XXDMPTPLS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Digital Potentiometer	Embedded	Yes, MCU, 8-Bit
Detailed Description	MCP42XX Digital Potentiometer Data Acquisition Evaluation Board
