Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > MCP3905RD-PM1

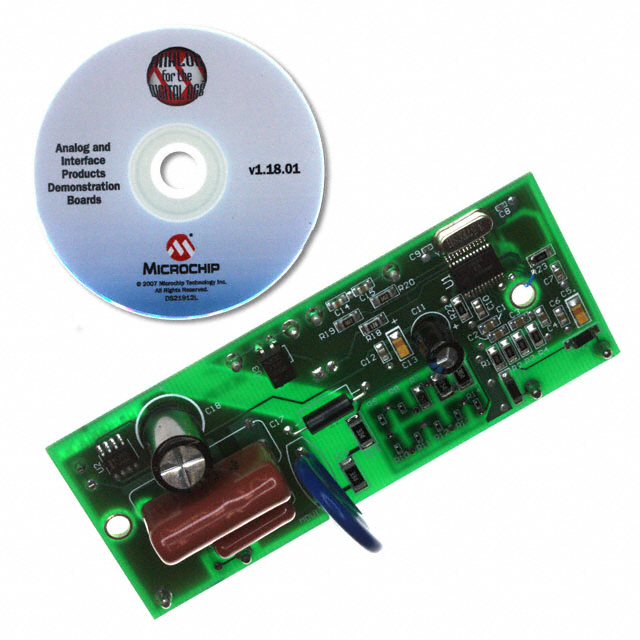

MCP3905RD-PM1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP3905RD-PM1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP3905RD-PM1
Manufacturer	Micrel / Microchip Technology
Description	REFERENCE DESIGN FOR MCP3905
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2087 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$17.011

Product parameter
Data sheet

Product parameter

Part Number	MCP3905RD-PM1	Manufacturer	Micrel / Microchip Technology
Description	REFERENCE DESIGN FOR MCP3905	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2087 pcs	Data sheet	MCP3905/6 Data Sheet MCP3905, 6 Reference Design Users Guide
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP3905/6
Type	Power Management	Supplied Contents	Board(s)
Series	-	Secondary Attributes	On Board Transformerless AC/DC 5V Supply
Primary Attributes	1-Phase, 220 VAC, In Case, With Mechanical Counter	Other Names	MCP3905RDPM1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Energy/Power Meter	Embedded	No
Detailed Description	MCP3905/6 Energy/Power Meter Power Management Evaluation Board
