Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Analog to Digital Converters ( > MCP3423EV

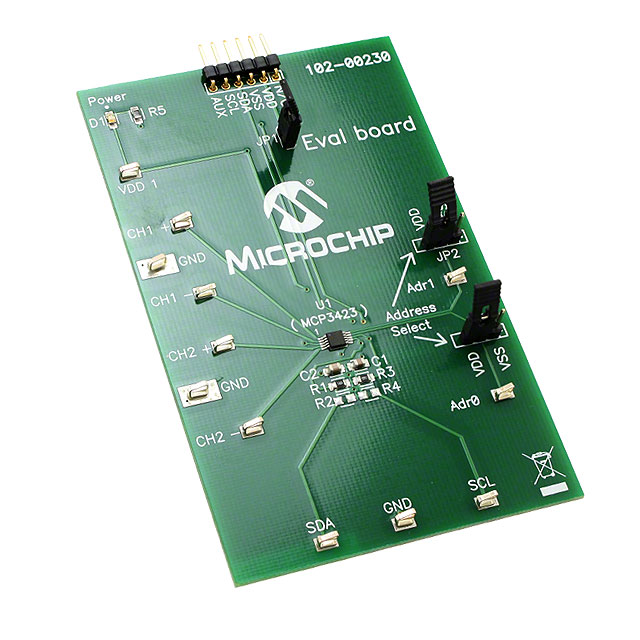

MCP3423EV

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP3423EV with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP3423EV
Manufacturer	Micrel / Microchip Technology
Description	BOARD EVAL 18BIT 2CH ADC MCP3423
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5423 pcs
Reference Price (In US Dollars)	9 pcs
Reference Price (In US Dollars)	$5.639

Product parameter
Data sheet

Product parameter

Part Number	MCP3423EV	Manufacturer	Micrel / Microchip Technology
Description	BOARD EVAL 18BIT 2CH ADC MCP3423	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5423 pcs	Data sheet	MCP3422-24 MCP3423 Eval Board Guide
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP3423
Supplied Contents	Board(s)	Series	-
Sampling Rate (Per Second)	3.75	Power (Typ) @ Conditions	-
Number of Bits	18	Number of A/D Converters	1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Range	±VREF	Detailed Description	MCP3423 - 18 Bit 3.75 Samples per Second Analog to Digital Converter (ADC) Evaluation Board
Data Interface	Serial
