Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > MCP3421DM-WS

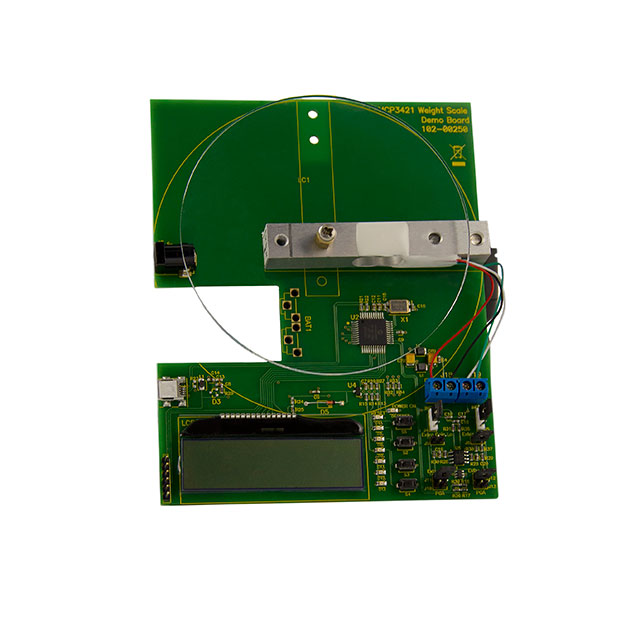

MCP3421DM-WS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP3421DM-WS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP3421DM-WS
Manufacturer	Micrel / Microchip Technology
Description	BOARD DEMO MCP3421 WEIGHT SCALE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5566 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MCP3421DM-WS	Manufacturer	Micrel / Microchip Technology
Description	BOARD DEMO MCP3421 WEIGHT SCALE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5566 pcs	Data sheet	MCP3421 Datasheet MCP3421 Weight Scale Demo Brd Guide MCP6V06/7/8 Portable Power Conversion Design Guide PIC18F2455/2550/4455/4550 Datasheet
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP3421, MCP6V07, PIC18F4550
Type	Reference Design	Supplied Contents	Board(s), Cable(s), Power Supply
Series	-	Secondary Attributes	-
Primary Attributes	2Kg load cell with 1mV/V sensitivity	Other Names	MCP3421DMWS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Weight Scale	Embedded	Yes, MCU, 8-Bit
Detailed Description	MCP3421, MCP6V07, PIC18F4550 Weight Scale Reference Design Evaluation Board
