Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > MCP2515DM-PTPLS

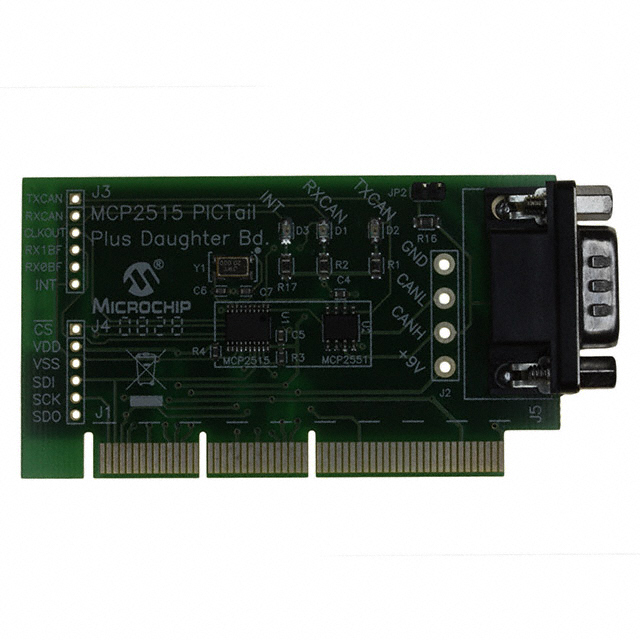

MCP2515DM-PTPLS

MCP2515DM-PTPLS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP2515DM-PTPLS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP2515DM-PTPLS
Manufacturer	Micrel / Microchip Technology
Description	BOARD DAUGHTER PICTAIL MCP2515
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2276 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$14.554

Product parameter
Data sheet

Product parameter

Part Number	MCP2515DM-PTPLS	Manufacturer	Micrel / Microchip Technology
Description	BOARD DAUGHTER PICTAIL MCP2515	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2276 pcs	Data sheet	MCP2515 Datasheet MCP2515DM-PTPLS User Guide
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP2515, MCP2551
Type	Interface	Supplied Contents	Board(s)
Series	PICtail™ Plus	Secondary Attributes	-
Primary Attributes	CAN Controller and CAN Transceiver in a PICtail Plus Daughter Board	Other Names	MCP2515DMPTPLS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	CANbus Controller	Embedded	Yes, MCU, 8-Bit
Detailed Description	MCP2515, MCP2551 CANbus Controller Interface Evaluation Board
