Home > Products > RF/IF and RFID > RF Transceiver Modules > ATZB-A24-U0R

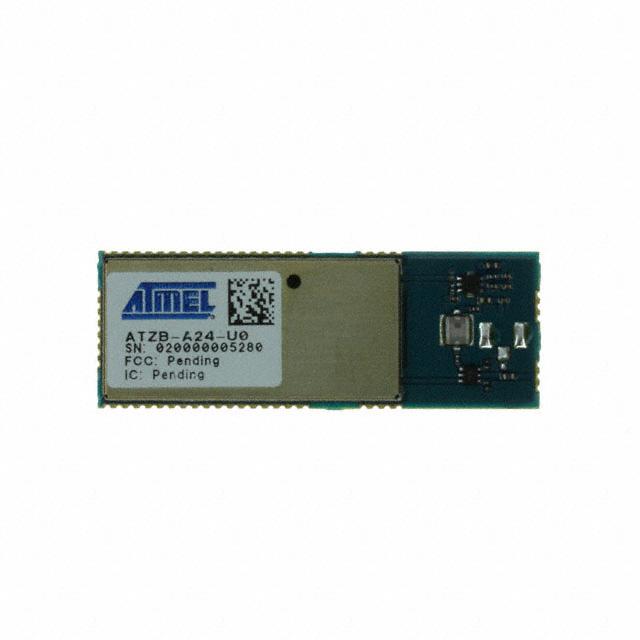

ATZB-A24-U0R

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATZB-A24-U0R with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ATZB-A24-U0R
Manufacturer	Micrel / Microchip Technology
Description	RF TXRX MODULE 802.15.4
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4751 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	ATZB-A24-U0R	Manufacturer	Micrel / Microchip Technology
Description	RF TXRX MODULE 802.15.4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4751 pcs	Data sheet	ATZB-A24-UFL_U0
Category	RF/IF and RFID	Voltage - Supply	3 V ~ 3.6 V
Utilized IC / Part	AT86RF230	Series	ZigBit™
Serial Interfaces	I²C, JTAG, SPI, UART, USART	Sensitivity	-104dBm
RF Family/Standard	802.15.4	Protocol	Zigbee®
Power - Output	20dBm	Packaging	Tape & Reel (TR)
Package / Case	PCB Module	Other Names	ATZB-A24-U0RTR
Operating Temperature	-20°C ~ 70°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Modulation	-
Memory Size	128kB Flash, 4kB EEPROM, 8kB RAM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	2.4GHz	Data Rate	250kbps
Current - Transmitting	50mA	Current - Receiving	23mA
Antenna Type	Not Included
