2N7002-G

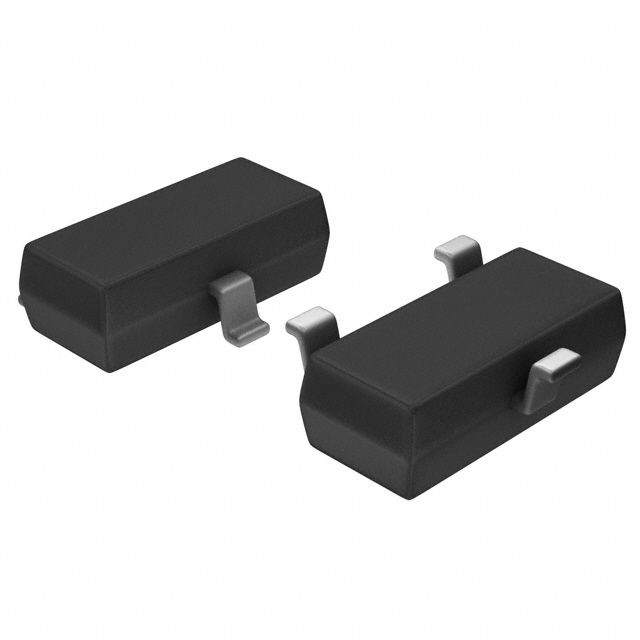

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N7002-G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N7002-G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N7002-G |
|---|---|
| Manufacturer | Micrel / Microchip Technology |
| Description | MOSFET N-CH 60V 0.115A SOT23-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.131 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N7002-G | Manufacturer | Micrel / Microchip Technology |
|---|---|---|---|
| Description | MOSFET N-CH 60V 0.115A SOT23-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 172602 pcs | Data sheet | 2N7002 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-23 (TO-236AB) | Series | - |
| Rds On (Max) @ Id, Vgs | 7.5 Ohm @ 500mA, 10V | Power Dissipation (Max) | 360mW (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Other Names | 2N7002-GMC 2N7002-GMC-ND 2N7002-GMCTR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | N-Channel 60V 115mA (Tj) 360mW (Ta) Surface Mount SOT-23 (TO-236AB) |
| Current - Continuous Drain (Id) @ 25°C | 115mA (Tj) |
