VT1697SBFQ

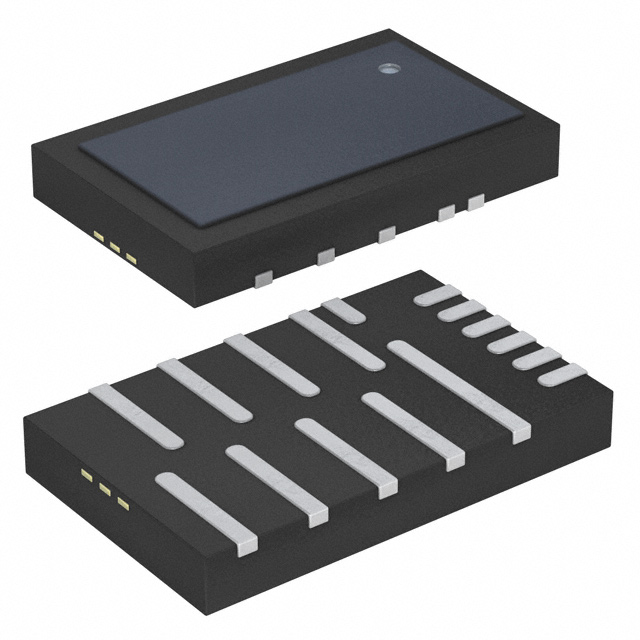

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VT1697SBFQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VT1697SBFQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VT1697SBFQ |
|---|---|
| Manufacturer | Maxim Integrated |
| Description | SWITCHING REG SMART SLAVE 55A 12 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $4.525 | $4.299 | $3.132 | $2.976 | $2.116 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | VT1697SBFQ | Manufacturer | Maxim Integrated |
|---|---|---|---|
| Description | SWITCHING REG SMART SLAVE 55A 12 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17524 pcs | Data sheet | VT1697SBFQ |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 1.71 V ~ 1.98 V |
| Voltage - Load | 8.5 V ~ 14 V | Technology | Power MOSFET |
| Supplier Device Package | 16-QFN (6x3.75) | Series | - |
| Rds On (Typ) | - | Packaging | Tray |
| Package / Case | 16-VFQFN | Output Configuration | Half Bridge |
| Other Names | 90-J1439+X02 | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | PWM |
| Features | Diode Emulation, Status Flag | Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Detailed Description | Half Bridge Driver General Purpose Power MOSFET 16-QFN (6x3.75) | Current - Peak Output | 55A |
| Current - Output / Channel | - | Applications | General Purpose |
