MAXM17543ALJ+

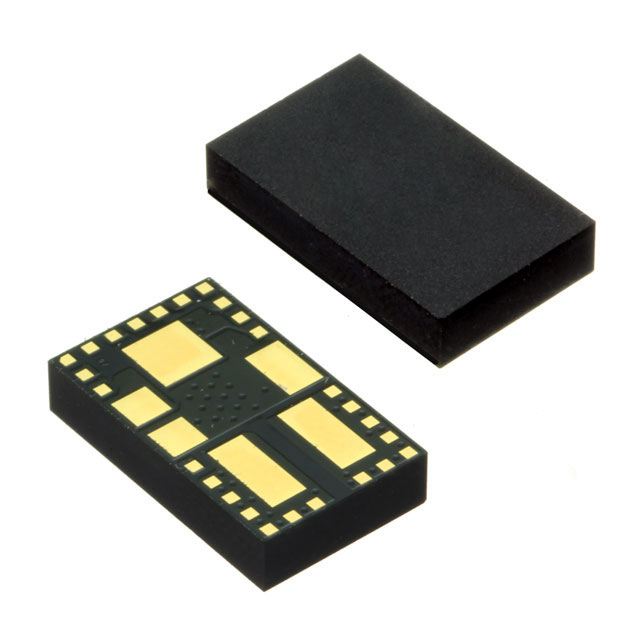

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAXM17543ALJ+ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MAXM17543ALJ+ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MAXM17543ALJ+ |
|---|---|
| Manufacturer | Maxim Integrated |
| Description | DC DC CONVERTER 0.9-12V 2.5A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $5.807 | $5.517 | $4.021 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $3.82 | $2.753 | $2.66 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MAXM17543ALJ+ | Manufacturer | Maxim Integrated |
|---|---|---|---|
| Description | DC DC CONVERTER 0.9-12V 2.5A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12594 pcs | Data sheet | MAXM17543EE-Sim Design, Simulation Environment Guide |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 0.9 ~ 12 V |
| Voltage - Input (Min) | 4.5V | Voltage - Input (Max) | 4.2V |
| Type | Non-Isolated PoL Module | Size / Dimension | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) |
| Series | Himalaya | Packaging | Tube |
| Package / Case | 29-SMD Module, Exposed Pad | Operating Temperature | -40°C ~ 125°C |
| Number of Outputs | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | OCP, OTP, UVLO |
| Efficiency | - | Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 12 V 2.5A 4.5V - 4.2V Input |
| Current - Output (Max) | 2.5A | Applications | ITE (Commercial) |
