Home > Products > Integrated Circuits (ICs) > PMIC - Voltage Regulators - Special Purpose > MAX8805ZEWEDD+T

MAX8805ZEWEDD+T

MAX8805ZEWEDD+T

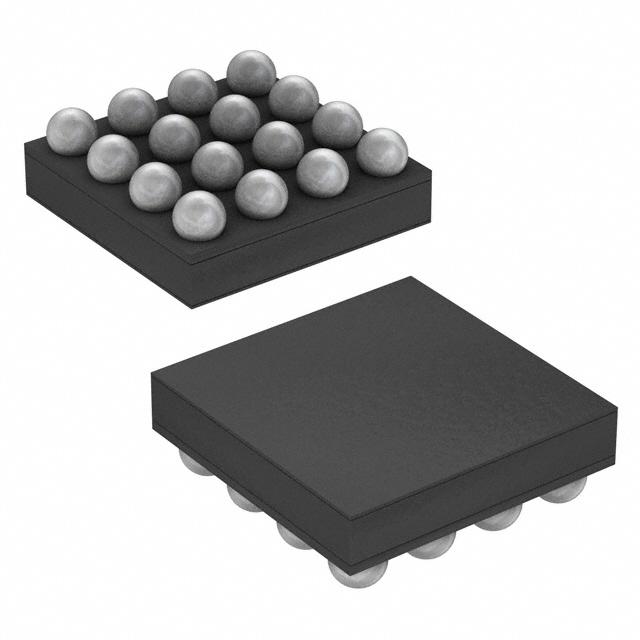

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX8805ZEWEDD+T with confidence from Components-World.HK, 1 Year Warranty

Dowload MAX8805ZEWEDD+T Details in PDF

Request a Quote

Part Number	MAX8805ZEWEDD+T
Manufacturer	Maxim Integrated
Description	IC CONV STP-DN PWM 600MA 16WLP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4379 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MAX8805ZEWEDD+T	Manufacturer	Maxim Integrated
Description	IC CONV STP-DN PWM 600MA 16WLP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4379 pcs	Data sheet	MAX8805W-Z Part Numbering System
Category	Integrated Circuits (ICs)	Voltage - Output	0.4 V ~ 5.5 V
Voltage - Input	2.7 V ~ 5.5 V	Supplier Device Package	16-WLP (2x2)
Series	-	Packaging	Tape & Reel (TR)
Package / Case	16-UFBGA, WLCSP	Operating Temperature	-40°C ~ 85°C
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	- Converter, WCDMA PA Power Voltage Regulator IC 1 Output 16-WLP (2x2)	Base Part Number	MAX8805
Applications	Converter, WCDMA PA Power
