Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX8795AEVKIT+

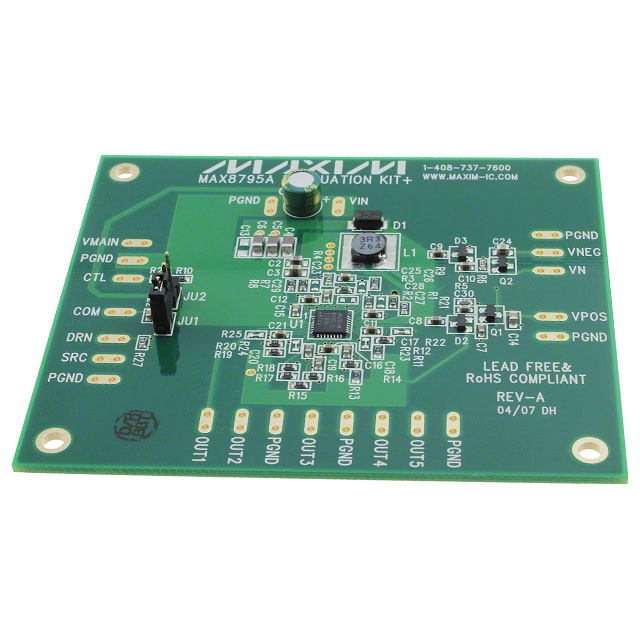

MAX8795AEVKIT+

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX8795AEVKIT+ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX8795AEVKIT+
Manufacturer	Maxim Integrated
Description	EVAL KIT FOR MAX8795A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 812 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$57.887	$54.611	$43.689	$41.504

Product parameter
Data sheet

Product parameter

Part Number	MAX8795AEVKIT+	Manufacturer	Maxim Integrated
Description	EVAL KIT FOR MAX8795A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	812 pcs	Data sheet	MAX8795A MAX8795A Eval Kit
Category	Development Boards, Kits, Programmers	Voltage - Output	7V, 7V, 7V, 7V, 7V, 14V, 25V, -10V
Voltage - Input	4.5 V ~ 5.5 V	Utilized IC / Part	MAX8795A
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost, Inverting	Outputs and Type	8, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	Special Purpose DC/DC, LCD Supply
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	1.2MHz
Detailed Description	MAX8795A - Special Purpose DC/DC, LCD Supply 8, Non-Isolated Outputs Evaluation Board	Current - Output	500mA, 130mA, 130mA, 130mA, 130mA, 130mA, 50mA, 20mA
Board Type	Fully Populated
