MAX5803ATB+T

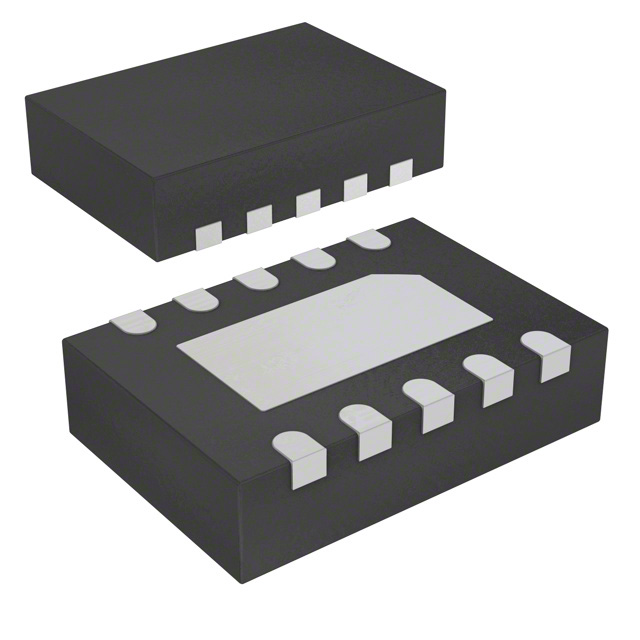

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX5803ATB+T with confidence from Components-World.HK, 1 Year Warranty
Dowload MAX5803ATB+T Details in PDFSee Product Specifications for product details.
Buy MAX5803ATB+T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MAX5803ATB+T |
|---|---|
| Manufacturer | Maxim Integrated |
| Description | IC DAC 8BIT I2C/SRL 10TDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.635 | $0.599 | $0.479 | $0.455 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.419 | $0.398 | $0.304 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MAX5803ATB+T | Manufacturer | Maxim Integrated |
|---|---|---|---|
| Description | IC DAC 8BIT I2C/SRL 10TDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61543 pcs | Data sheet | MAX5803-05Part Numbering System |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Digital | 2.7 V ~ 5.5 V |
| Voltage - Supply, Analog | 2.7 V ~ 5.5 V | Supplier Device Package | 10-TDFN (3x2) |
| Settling Time | 2.8µs (Typ) | Series | - |
| Reference Type | External, Internal | Packaging | Strip |
| Package / Case | 10-WFDFN Exposed Pad | Output Type | Voltage - Buffered |
| Other Names | MAX5803ATB+ MAX5803ATB+TTR MAX5803ATB+TTR-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of D/A Converters | 1 | Number of Bits | 8 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | INL/DNL (LSB) | ±0.05, ±0.05 |
| Differential Output | No | Detailed Description | 8 Bit Digital to Analog Converter 1 10-TDFN (3x2) |
| Data Interface | I²C | Base Part Number | MAX5803 |
| Architecture | R-2R |
