Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX5066EVKIT

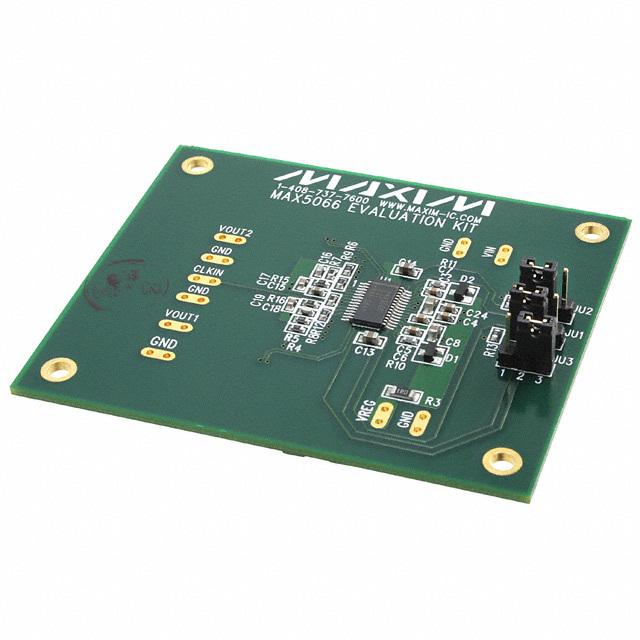

MAX5066EVKIT

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX5066EVKIT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX5066EVKIT
Manufacturer	Maxim Integrated
Description	EVAL KIT FOR MAX5066
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1707 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$23.01

Product parameter
Data sheet

Product parameter

Part Number	MAX5066EVKIT	Manufacturer	Maxim Integrated
Description	EVAL KIT FOR MAX5066	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1707 pcs	Data sheet	MAX5066 MAX5066 Eval Kit EE-Sim Design, Simulation Environment Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	0.8V, 1.3V
Voltage - Input	5 V ~ 16 V	Utilized IC / Part	MAX5066
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	2, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	500kHz	Detailed Description	MAX5066 - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board
Current - Output	10A, 10A	Board Type	Fully Populated
