MAX4800ACXZ+

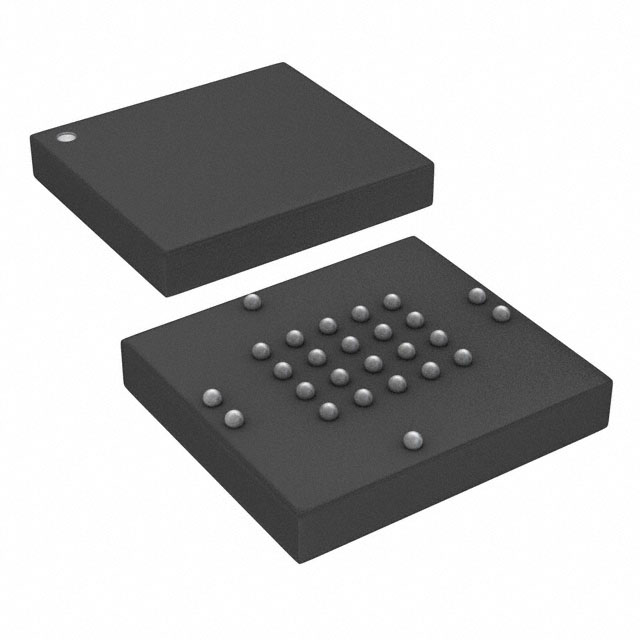

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX4800ACXZ+ with confidence from Components-World.HK, 1 Year Warranty
Dowload MAX4800ACXZ+ Details in PDFSee Product Specifications for product details.
Buy MAX4800ACXZ+ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MAX4800ACXZ+ |
|---|---|
| Manufacturer | Maxim Integrated |
| Description | IC SWITCH OCTAL SPST 26CSBGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 216 pcs | ||||
|---|---|---|---|---|---|
| $6.998 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MAX4800ACXZ+ | Manufacturer | Maxim Integrated |
|---|---|---|---|
| Description | IC SWITCH OCTAL SPST 26CSBGA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5431 pcs | Data sheet | MAX4800,02(A)Part Numbering System |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 2.7 V ~ 6 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 5µs, 5µs |
| Switch Circuit | SPST - NO | Supplier Device Package | 72-CSBGA (6.0x5.3) |
| Series | - | Packaging | Tube |
| Package / Case | 26-LFBGA, CSBGA | Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 38 Ohm | Number of Circuits | 8 |
| Multiplexer/Demultiplexer Circuit | 1:1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 8 Circuit IC Switch 1:1 38 Ohm 72-CSBGA (6.0x5.3) | Current - Leakage (IS(off)) (Max) | 2µA |
| Crosstalk | -80dB @ 5MHz | Charge Injection | - |
| Channel-to-Channel Matching (ΔRon) | 1.9 Ohm | Channel Capacitance (CS(off), CD(off)) | 18pF |
| Base Part Number | MAX4800 | -3db Bandwidth | - |
